Product Overview

SKD1709B is a high density IP to analog RF platform that carries 32/48/64 free adjacent channels in a 2U box. Browser based user interface facilitate system setup and maintenance efficiency. This outstanding headend system consume much less power then other competitors, eventually reduce operating cost and extend life cycle.

Product Features

1.System provides 1 GE input ports for both MPTS and SPTS video streams

2. Receive up to 256 IP streams and output up to 32/48/64 channels in NTSC or PAL standard

3. Easy configuration and software upgrade by built-in Web UI

4. Support running text and image overlay

5. Support BISS decryption as an option

6.Support multi sound tracks and subtitles selection

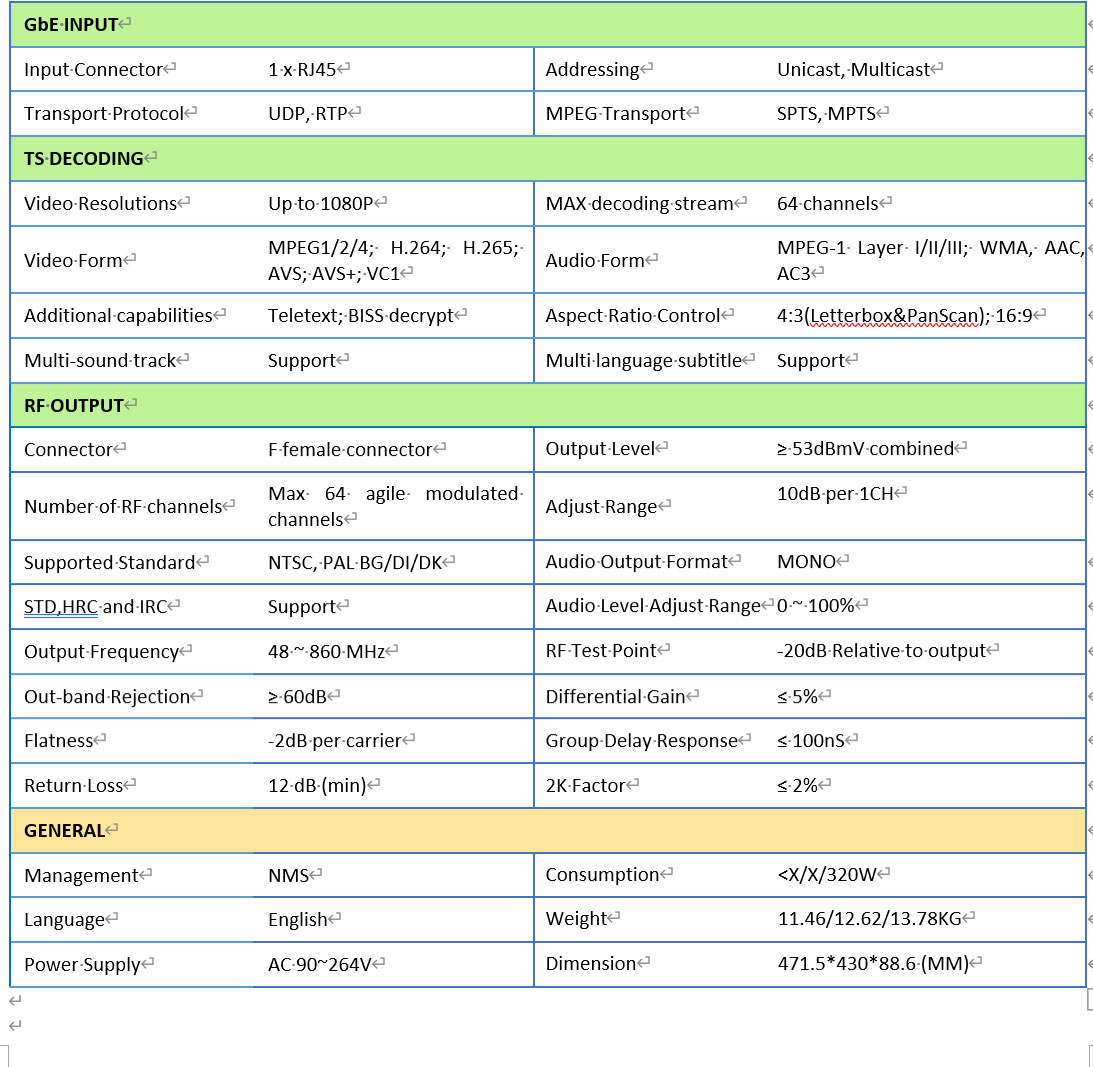

Product Parameter
