Product Overview

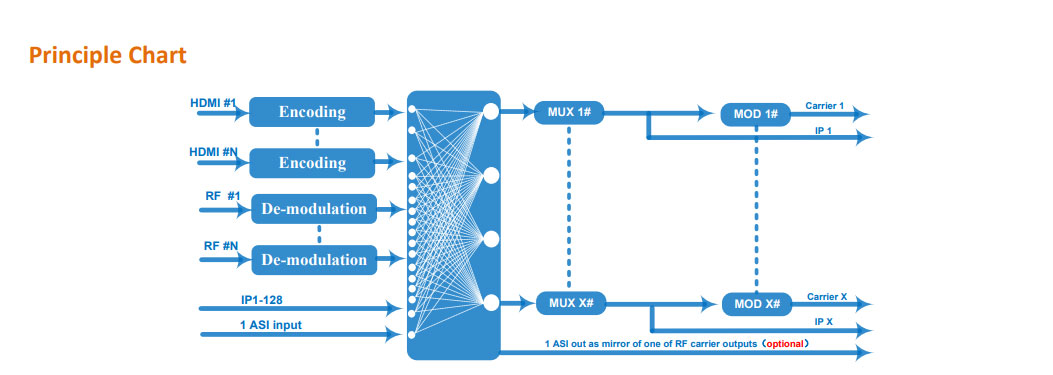

NDS3536S is a professional high integration device which includes encoding (and de-modulation), multiplexing, and modulation functions in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S2/S2X/C/T/T2/ISDB-T tuner mix input) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…

Product Features

 8/16/24 HDMI (or HDMI plus DVB-S2/S2X/C/T/T2/ISDB-T tuner) inputs, MPEG-4 AVC/H.264 Video encoding

 1 ASI input for re-mux

  1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32)

 128 IP input over UDP and RTP via GE port  Each carrier out channel process maximum 32 IP from the GE port (UDP&RTP protocol)

 MPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment  Support 12ch DVB-C RF out (8ch/16ch DVB-T, 8ch ATSC, or 6ch/16ch ISDB-T out for option, as per order)  Support 1 ASI out as mirror of one of RF output carriers---Optional

  Support MPTS IP output over UDP, RTP/RTSP  Support LOGO, Caption and QR code insertion (Language Supported: 中文, English, ية عرب ال, ไทย, , р у с с к и й , اردو, for more languages please consult us…)

 Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting

 Control via web management, and easy updates via web

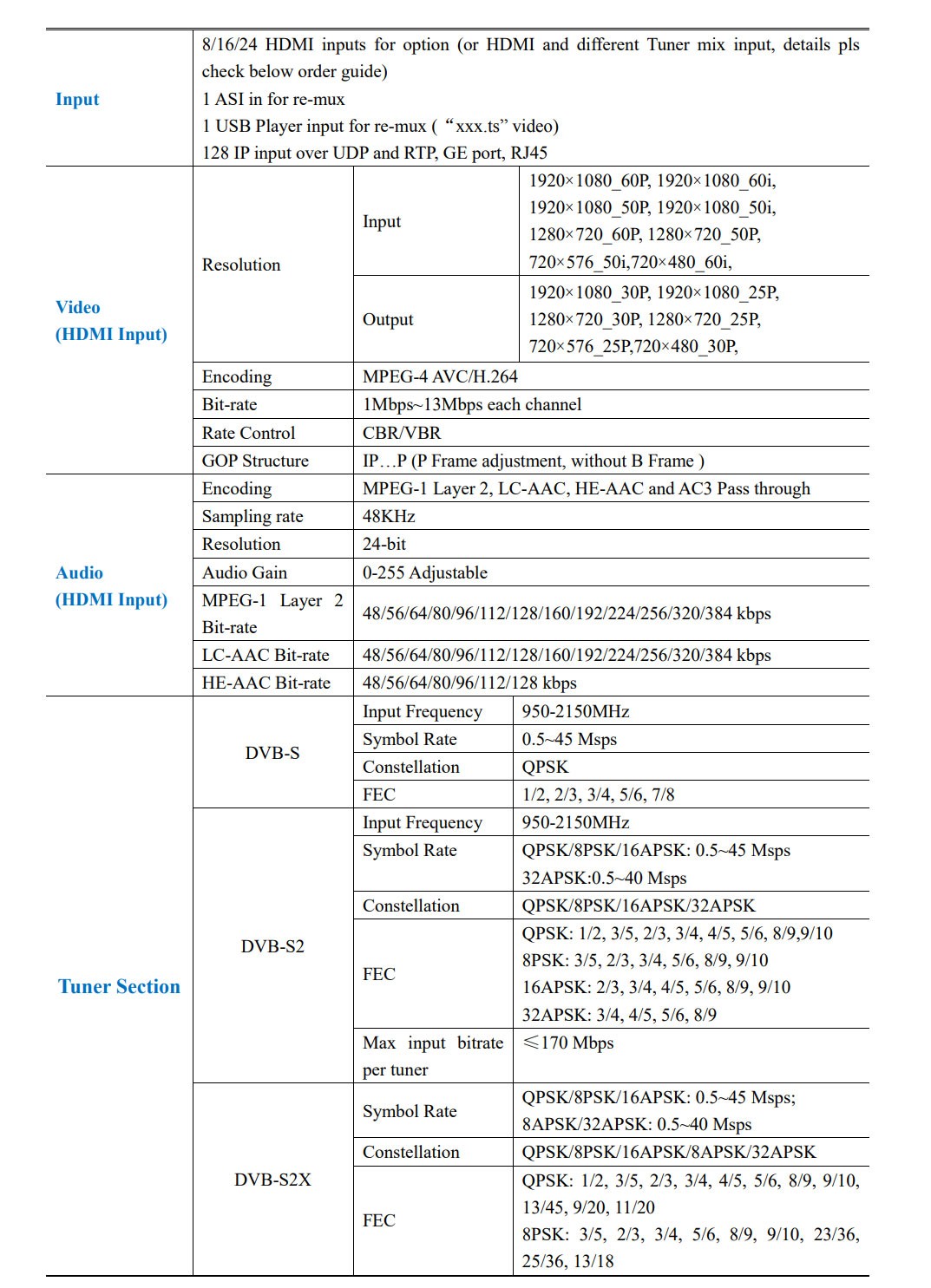

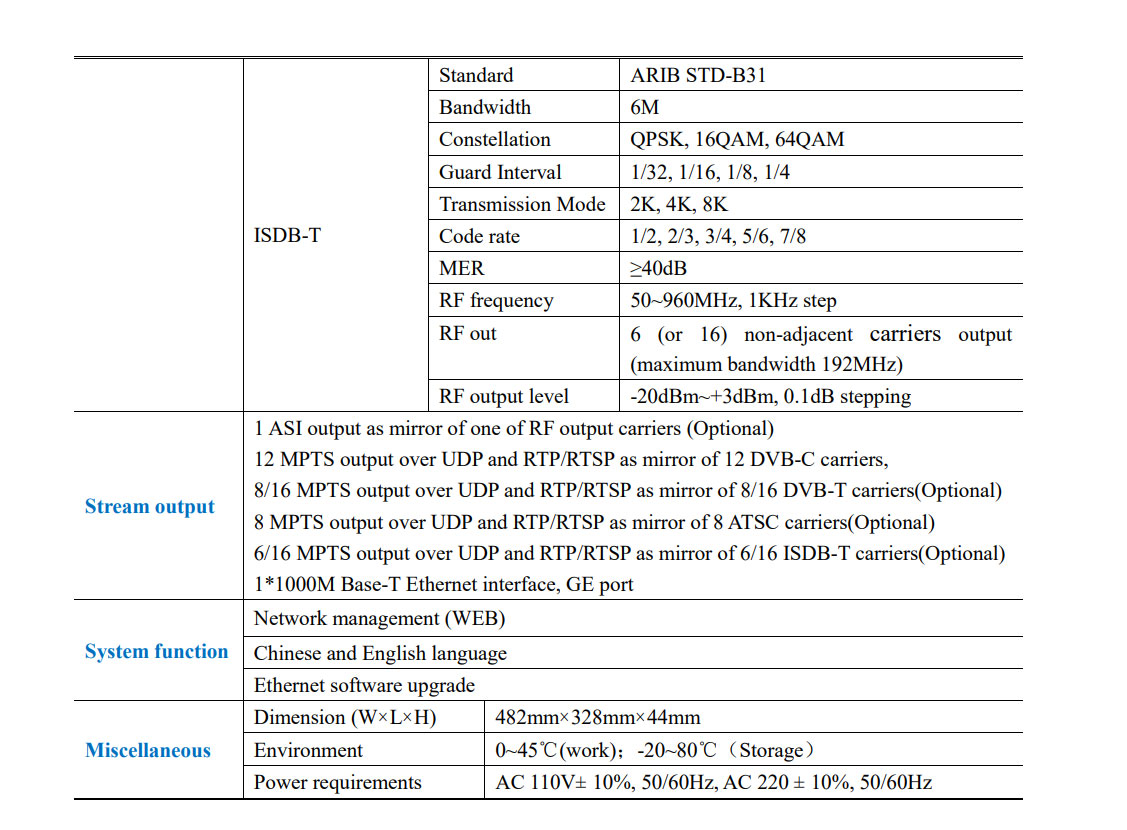

Product Parameter
