Product Overview

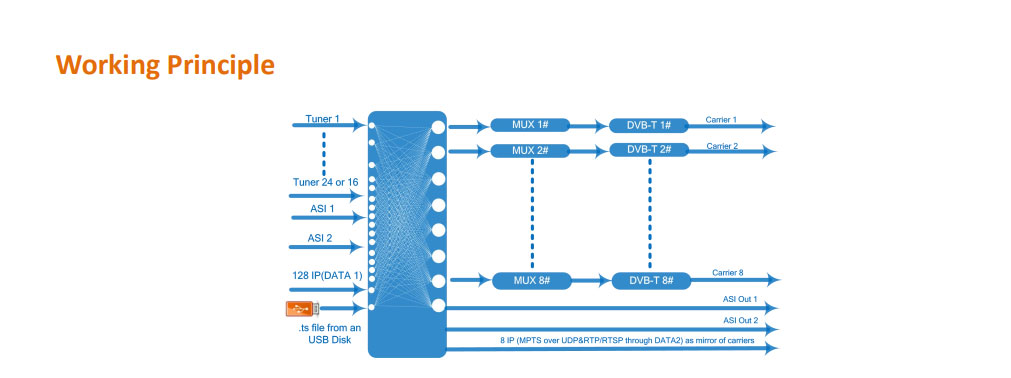

NDS3394T V3 is a high performance and cost-effective DVB-T modulator designed by TUOYING. It supports 24 or 16 FTA tuners input, maximum 128 IP inputs through DATA1 and 2 TS inputs for re-mux through 2 ASI input ports. After demodulating, multiplexing and DVB-T modulating, it outputs 8 non-adjacent carriers and 8 IP (MPTS) as mirror of carriers through DATA2.

NDS3394T is also characterized with high integrated level, high performance and low cost. This is very adaptabl

Product Features

 24 (or 16) FTA DVB-S/S2/S2X or DVB-C/T/T2/ISDB-T Multi-Mode switchable tuner inputs with loop out + 2 ASI inputs+128 IP inputs thru DATA 1 over UDP and RTP protocol, and TS files input by playing ts via an USB disk (FAT 32, USB 2.0)

 8 DVB-T non-adjacent carriers output, within 192MHz bandwidth

 8 IP (MPTS) outputs over UDP and RTP/RTSP thru DATA 2, as mirror of the carriers

 2 TS outputs thru ASI out 1 and ASI out 2, as mirror of the 2 chosen carriers

 Support 8 groups multiplexing+8 groups DVB-T modulating

 Excellent RF output performance index, MER≥40db

 Support accurate PCR adjusting

 Support PSI/SI editing and inserting

 Support Web management, Updates via web

 Reboot in Web after firmware upgrading

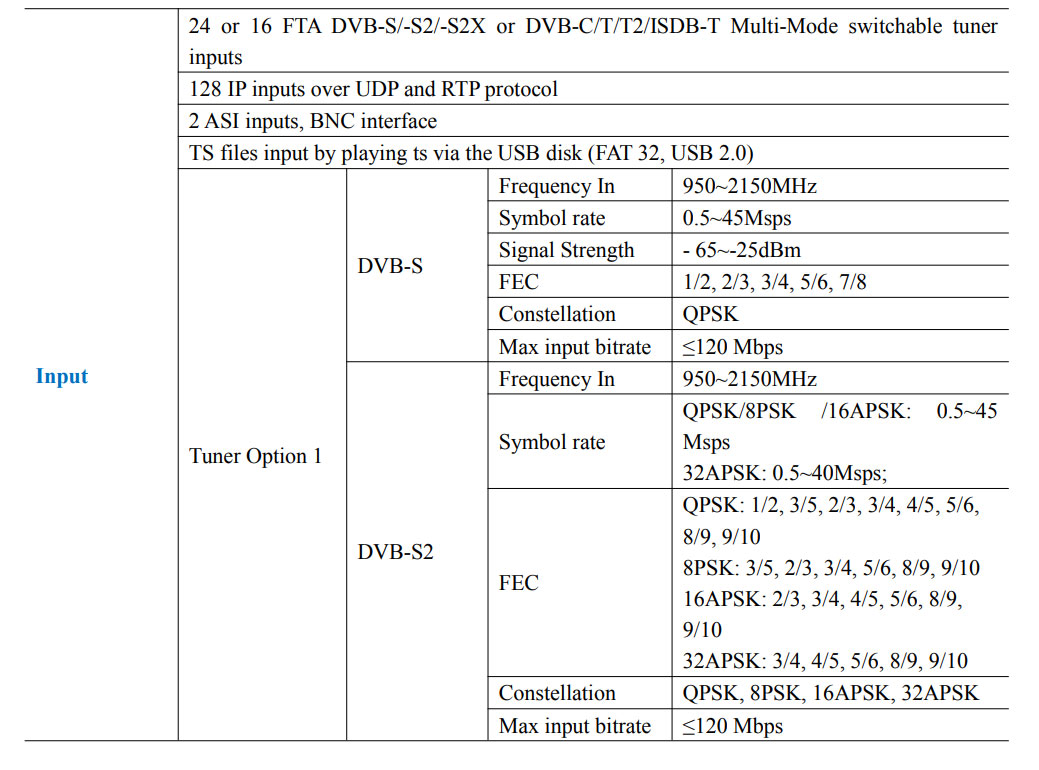

Product Parameter
