Product Overview

TUOYING NDS3556 4K 50/60P encoder modulator is designed based on consumer electronics which allow HDMI signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, etc.

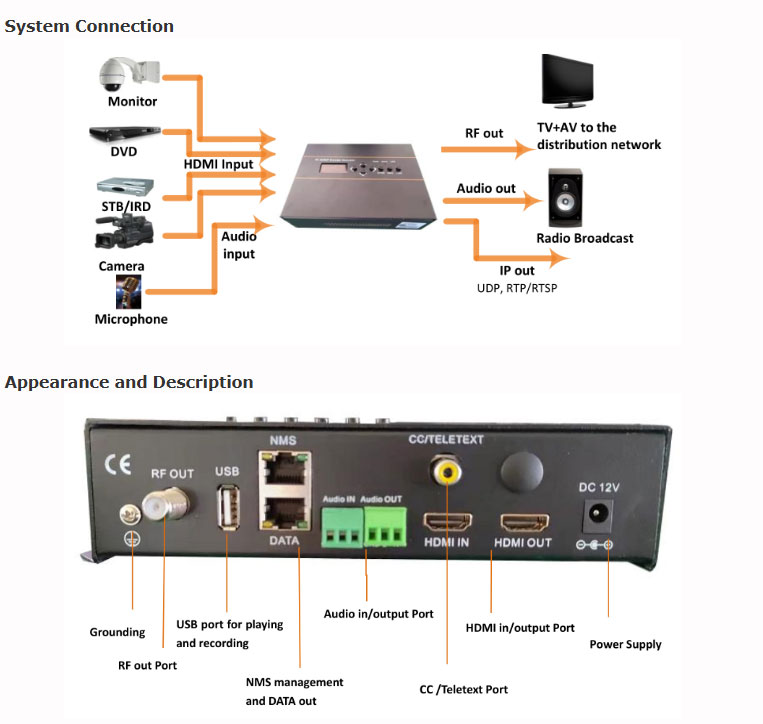

It is an all-in-one device integrating encoding and modulating to convert audio/video signals into DVB-C/DVB-T/ISDB-T/ATSC RF out.

The signals source could be from STB, satellite receiver, closed-circuit television cameras and etc. Its output signal is to be received by TVs or STBs etc.

Product Features

HDMI input with H.265/h.264 video（4K encoding for H.265 only）

DVB-C/DVB-T/ISDB-T/ATSC RF OUT for order option

IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port

Support AC3 Pass-through

Support OSD (logo/QR Code) insertion，logo in PPT form is available

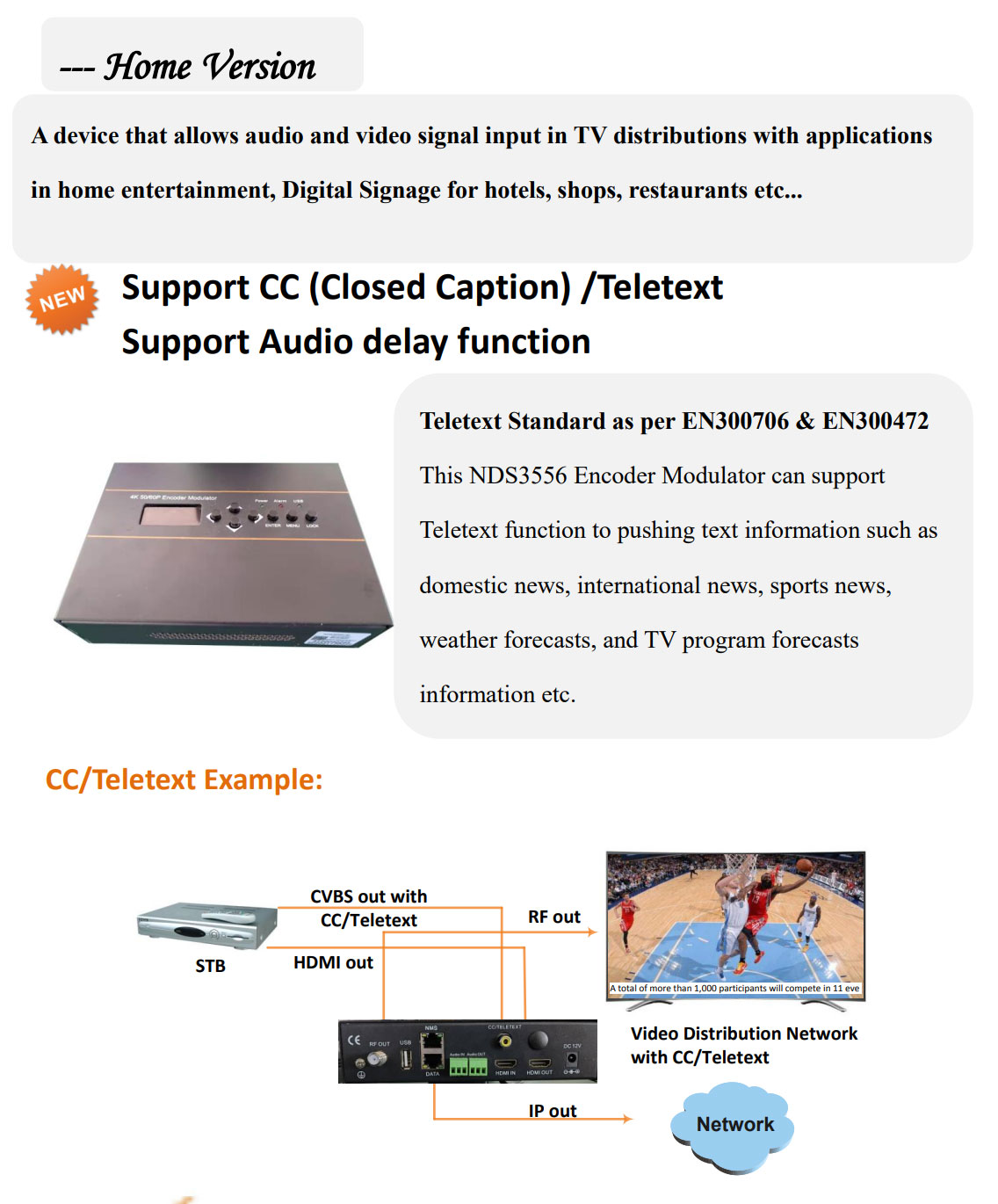

Support CC (Closed Caption) /Teletext (CC is not available for H.265 at present)

Support Audio delay function

Support TS recording and playing via the USB disk (FTA 32)

LCD Screen for easy management

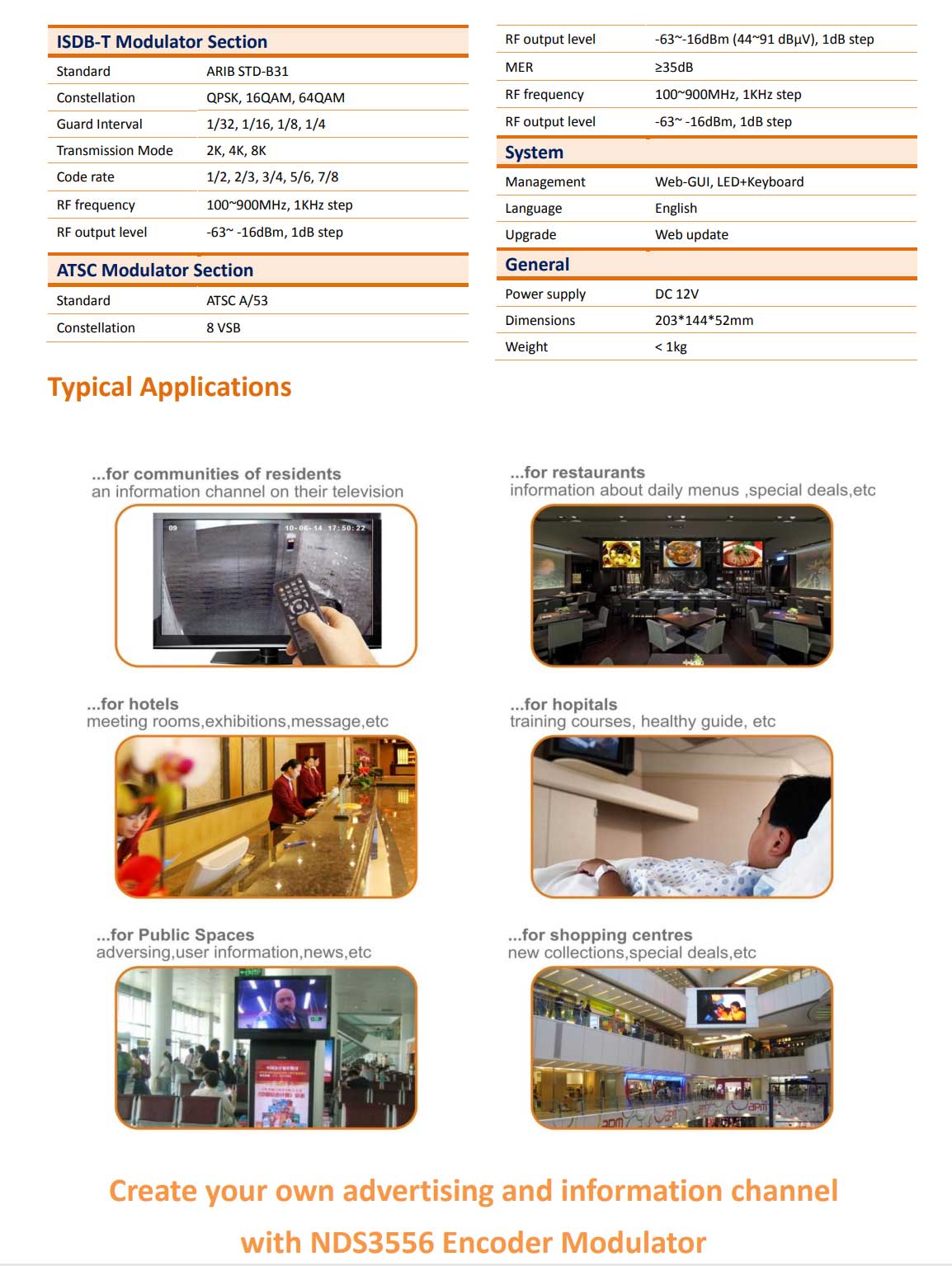

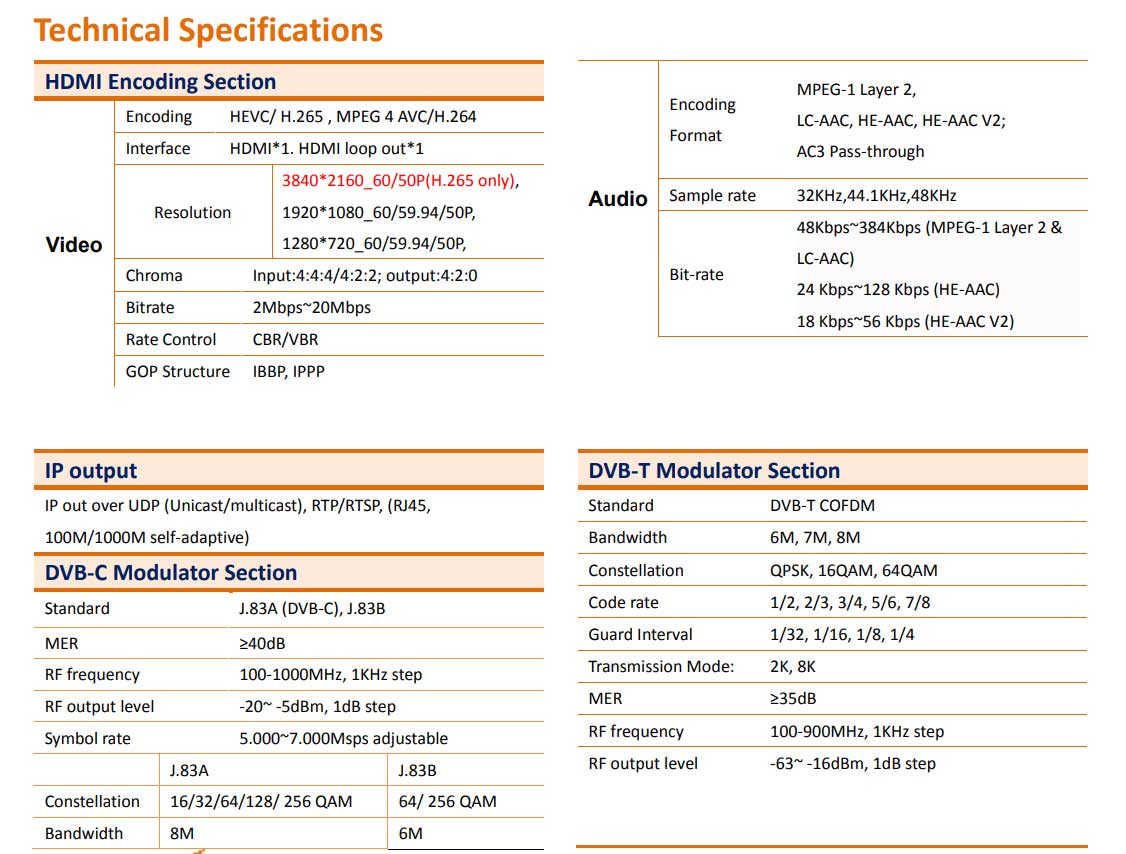

Product Parameter
