Product  Overview

The EX2408A series is the latest cost-effective HD encoder modulator. It supports 4 / 8 / 12 / 16 / 20 / 24 channels HDMI input, 1 channel Gigabit IP input / output; 8 channel(ATSC、ISDBT、DTMBT、DVB-C/-T) output, MPTS and SPTS output. With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.

Product Features

4 / 8 / 12 / 16 / 20 / 24 channels HDMI input

 1 Gigabit IP input/output,MPTS/SPTS output,UDP/RTP protocol (multicast)

 All standard modulation (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.

 Support 2* ASI input

 Support 2* ASI output separately

 LCD display and Bottoms operation

 Web network management

 Support online software upgrading

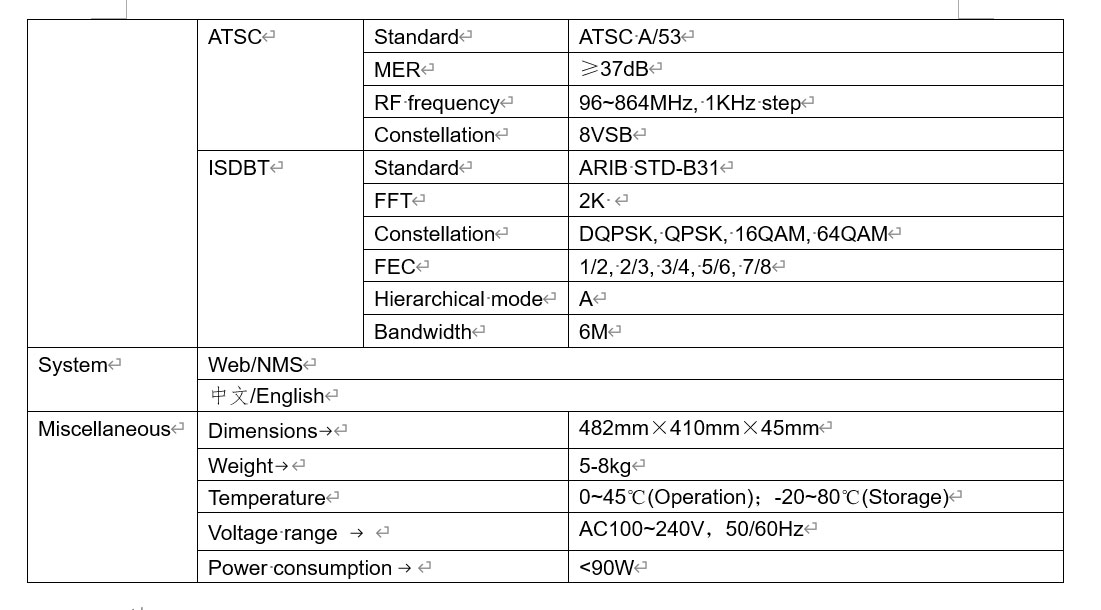

Product Parameter
