Product Overview

NDS3536S-N DTV processor is a high integration dual platform which includes DVB encoder/IRD-mux-modulator and IPTV streamer in one case. It supports 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/T2/ISDB-T tuner mix input) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports to convert the contents to IP streams out over multiple protocols to fit for internet transmission.

Key features

· DVB+IPTV dual platform in one case

· 8/16/24 HDMI (or HDMI plus DVB-S/S2/S2X/C/T/T2/ISDB-T tuner) inputs,HEVC/H.265 & MPEG-4 AVC/H.264 Video encoding

· 1 ASI input for re-mux, TS files input by external USB disk

· Support 32ch DVB-C RF out (16ch DVB-T, 16ch ATSC, or 16ch ISDB-T out for option, as per order)

· IP input over UDP/RTP/RTSP/HLS/HTTP/SRT

· Support MPTS IP output over UDP/RTP/RTSP, and SPTS out over UDP/HLS /HTTP /RTP /RTSP /RTMP /SRT Protocol

· Support LOGO, Caption and QR code insertion for local made channels

· Control via web management, and easy updates via web

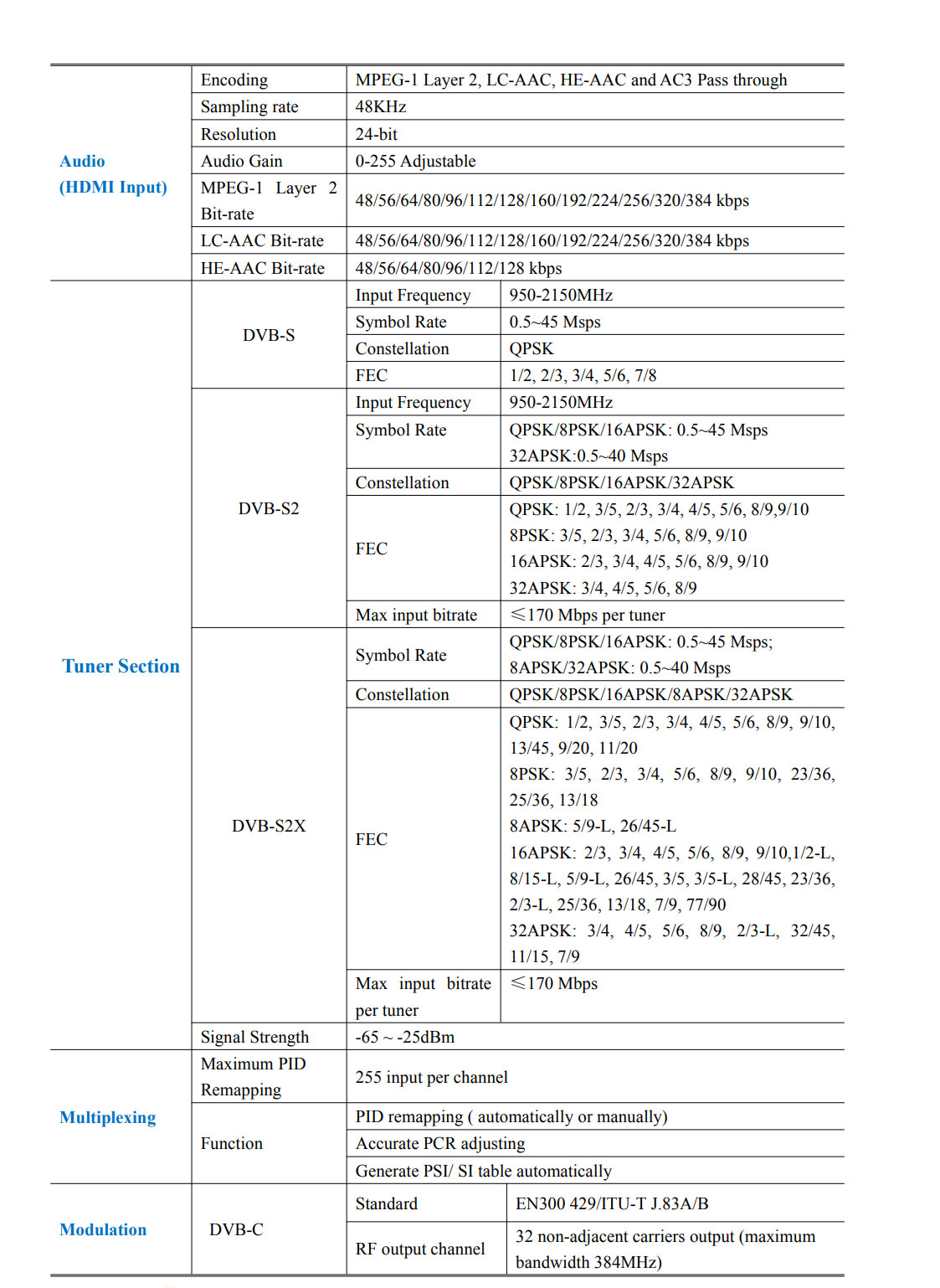

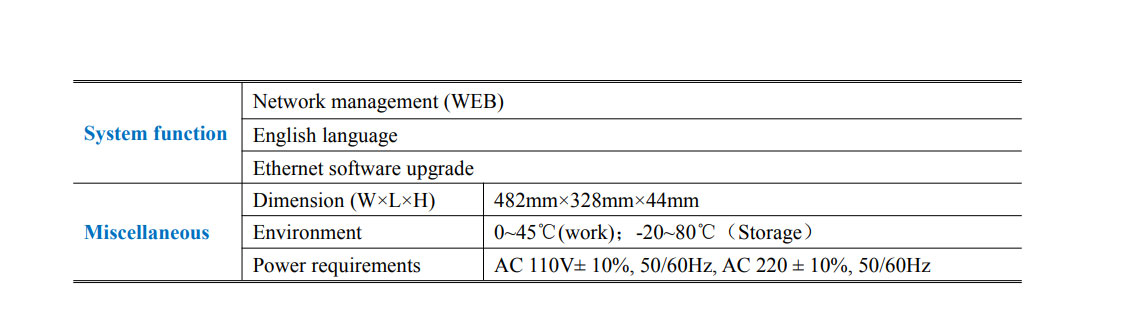

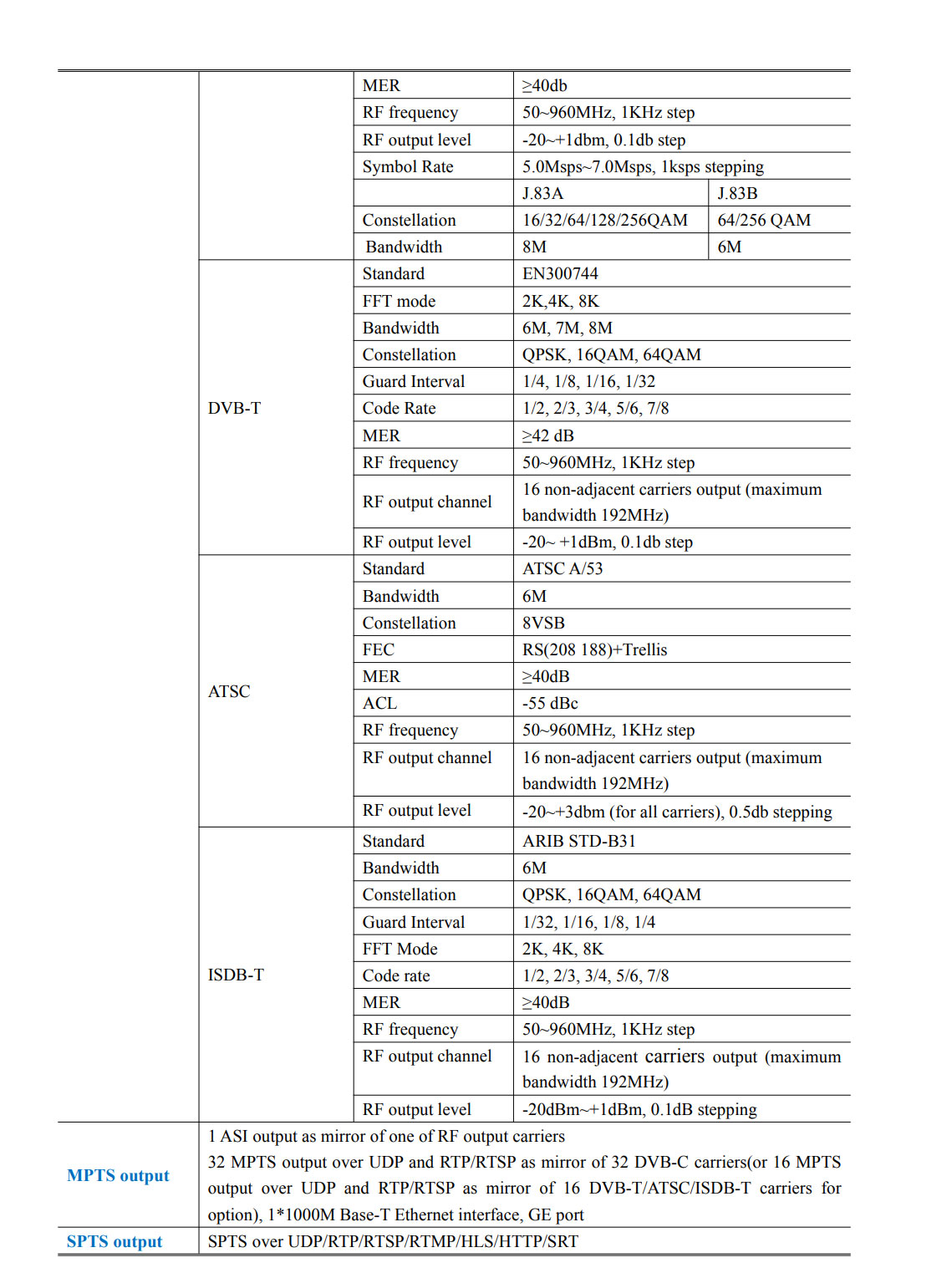

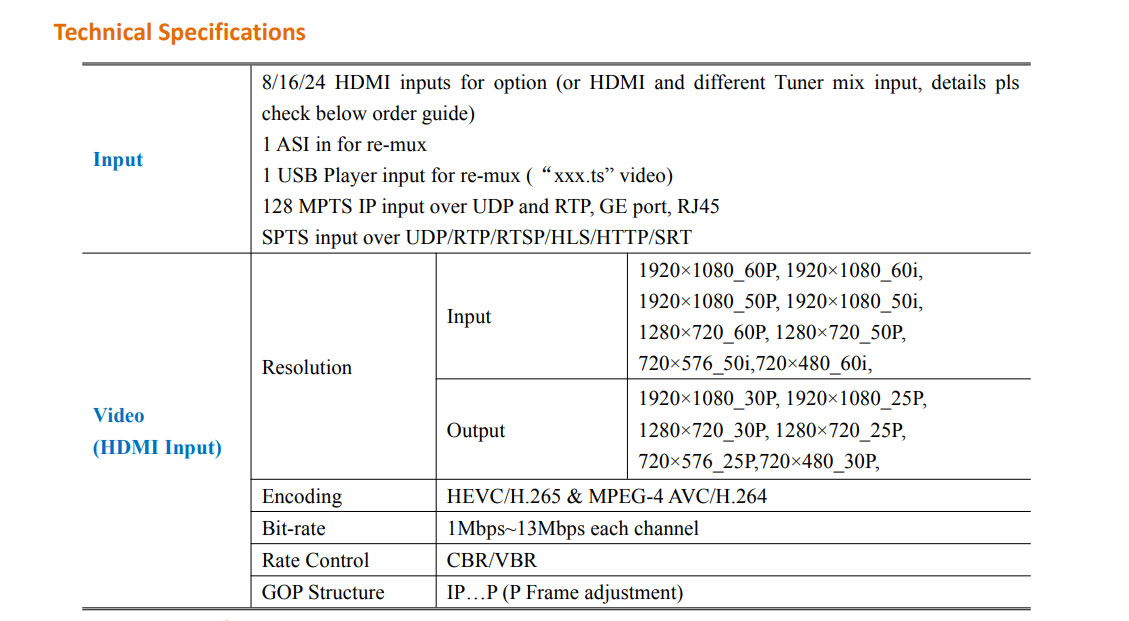

Product Parameter
