Product Overview

TUOYING TN2401X-7R is a professional high integration device which includes tuner demodulation, multiplexing. It supports 4/8/12/16/20/24 tuner input(support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 DTMBT、ISDBT, etc. ) input), Supports multiple streaming media protocol output (DATA1:RTMP/HTTP/RTSP/HLS/SRT); 5 MPTS output and 512 SPTS output (DATA2:UDP/RTP)。In conclusion, its high integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Key Features

4/8/12/16/20/24 tuner input;the tuner supports（DVB-S2/DVB-C/-T/ATSC/ISDBT/DTMBT）

 Support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 DTMBT,、ISDBT ) input, or mixed use ( e.g., 4-way DVB-T and 4-way ATSC input at the same time.)

 Supports 2-way gigabit output(DATA1:RTMP/HTTP/RTSP/HLS/SRT;DATA2:UDP/RTP)

 Supports 1-way gigabit input，128 IP address input（DATA3:UDP/RTP）

 2 ASI inputs

 2 ASI Independent output

 Web-based NMS management

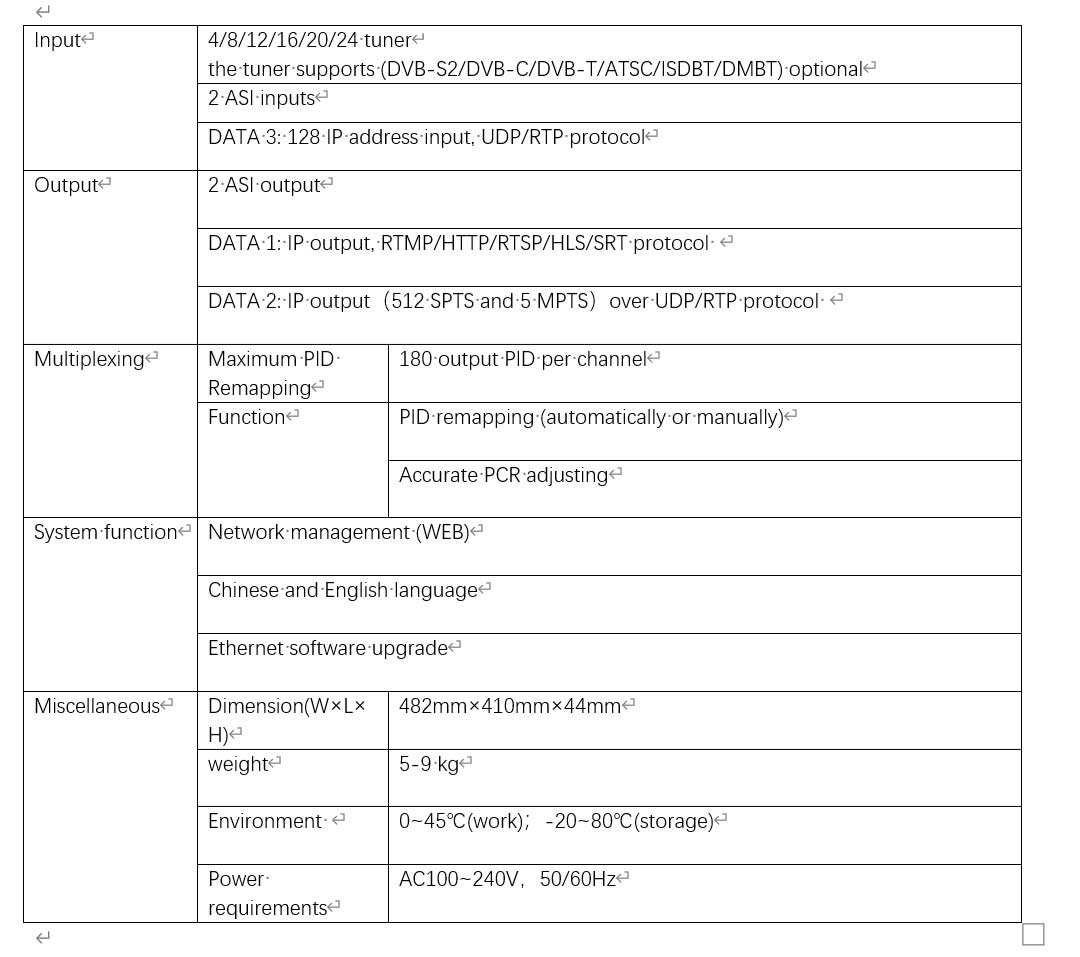

 Product Specifications
