Product Overview

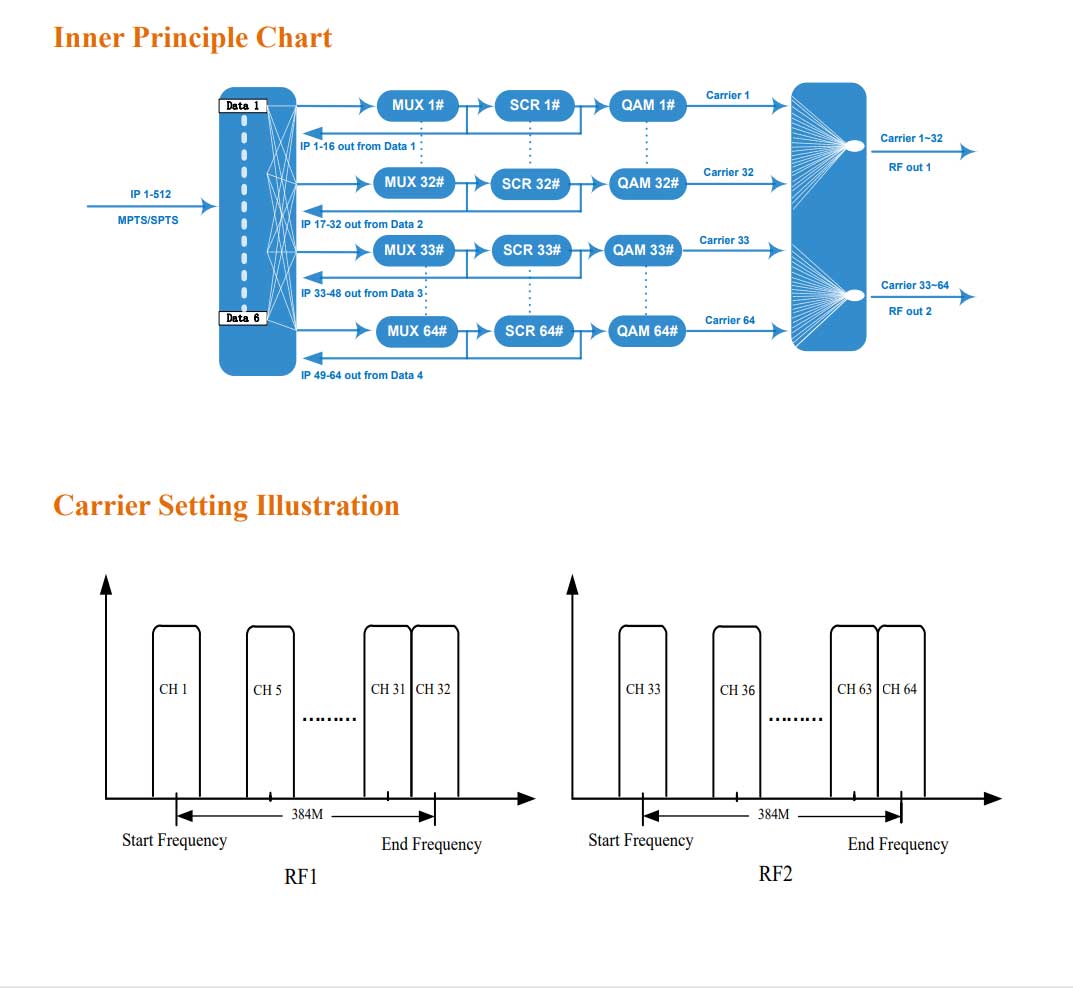

NDS3364 64 in 1 IP QAM modulator is a Multiplexing-scrambling-modulating all-in-one device developed by DEXIN. It has 64 multiplexing channels, 64 scrambling channels and 64 QAM (DVB-C) modulating channels, and supports maximum 512 IP inputs through 6 data ports and 64 non-adjacent carriers (50MHz~960MHz) output through 2 RF output interfaces. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers

Key Features

 6 GE inputs (4*RJ45, 2*SFP)

 Supports up to 512 IP inputs over UDP/RTP

 Max 840Mbps and 512 IP inputs for each GE input

 Supports multiplexing with accurate PCR adjusting, CA PID filtering, PID remapping and

PSI/SI editing

 Supports up to 256 PID remapping per channel

 Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and

ETSI 103 197

 Support 64 multiplexed or scrambled IP outputs over UDP/RTP/RTSP

 64 non-adjacent QAM carriers output from 2 RF interfaces, compliant to DVB-C (EN 300 429)

and ITU-T J.83 A/B/C

 Supports RS (204,188) encoding

 Support Web-based Network management
