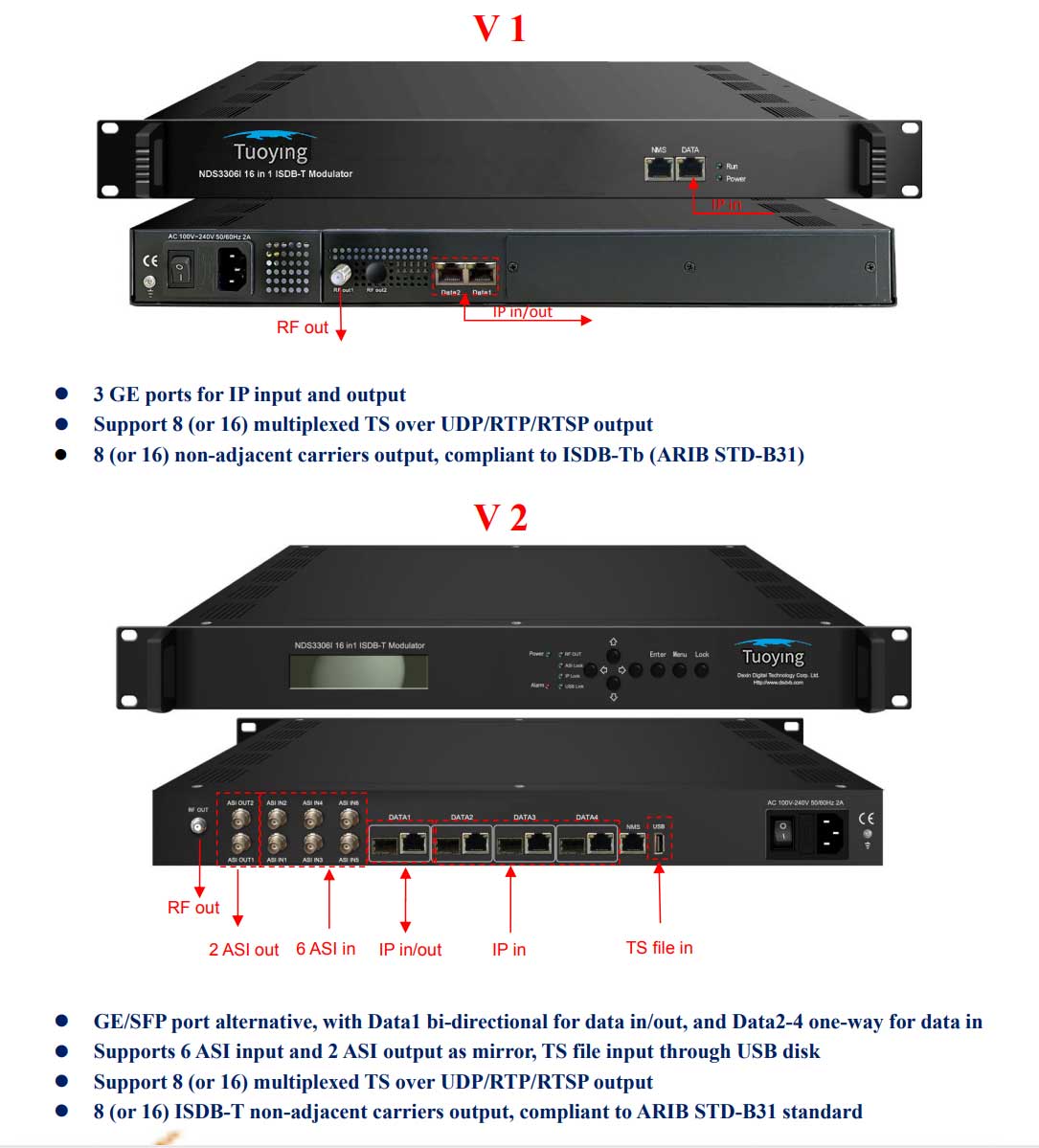

Product Overview

NDS3306I ISDB-T modulator is the latest generational Mux-modulating device developed by TUOYING. It converts IP streams to 8 (or 16) ISDB-T non-adjacent carriers output through the RF interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system..

Key Features

* Max 840Mbps for each GE input

* Supports accurate PCR adjusting

* Supports CA filtering, PID remapping and PSI/SI editing

* Supports up to 256 PIDS remapping per channel

* 8 (or 16) non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31)

* Support Web-based Network management
