Product Overview

The SKD211X is a high performance and cost-effective modulator. It encodes, multiplexes and modulates the two HD signals into 1 RF signal (DVB-C / DVB-T / ATSC/ QAM / DTMB factory set). The NMS port also can be used as the IP data input port to take in the camera IP signal with ONVIF protocol. The camera IP signals will be modulated into the RF channel as well.

Product Features

1. Video encoding in H.264 and audio encoding in AAC

2. Max input resolution up to 1080P_60 and output in 1080P_30

3. Convert security IP camera signal to a RF channel

4. Portable and low power consumption

5. Front panel LCD display for quick configuration

6. Easy configuration with built-in Web UI

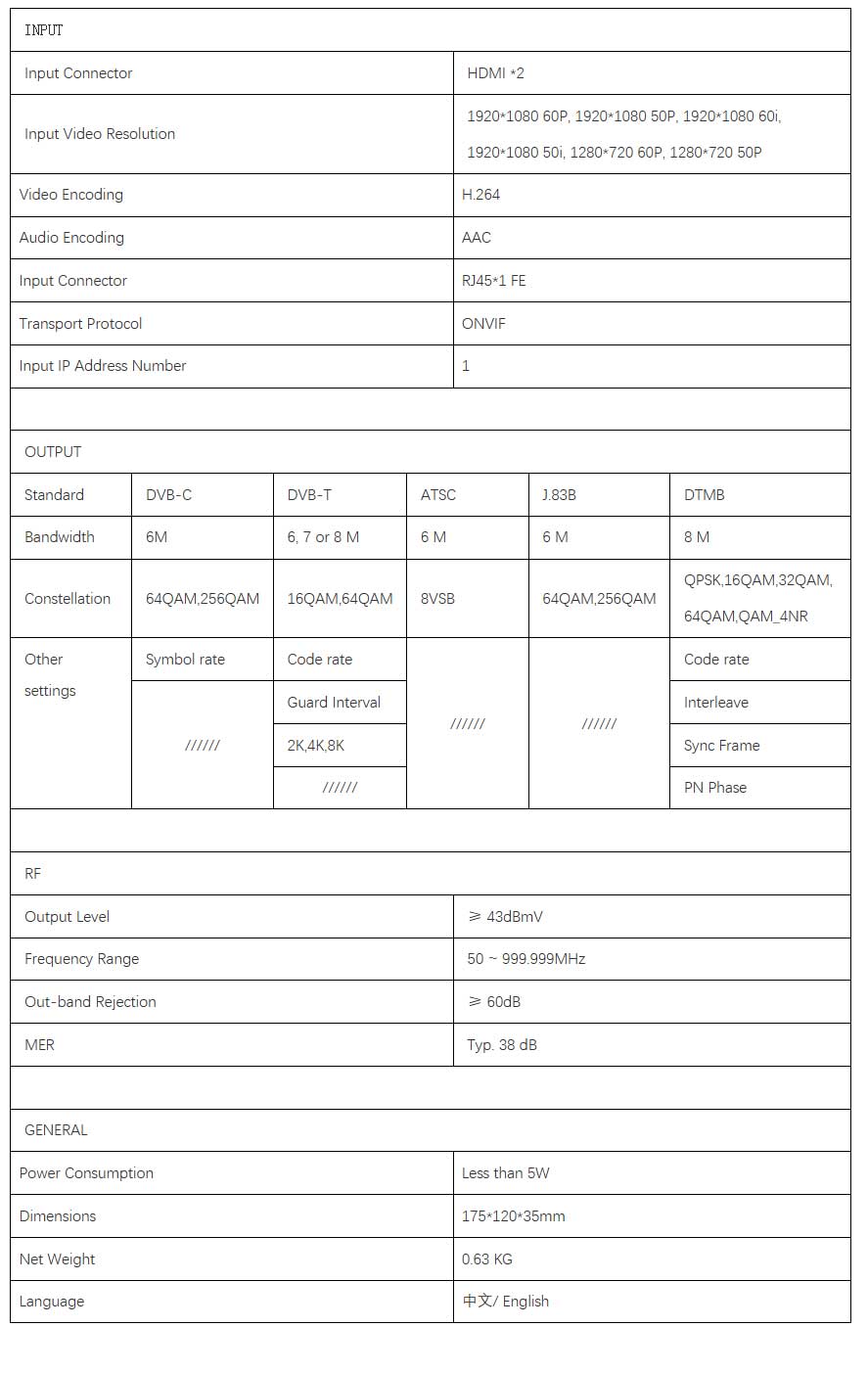

Product Parameter
