Product Overview

EX0804S series STANDARD & Clear Modulation integrated machine is our company's latest research and development of a AV(CVBS) input and modulation in one of the cost-effective equipment.The device supports 4 channels /8 channels AV input and 1 channel gigabit IP input/output;Support 4 single carrier (ATSC, ISDBT, DTMBT, DVB-C/-T) five modulation optional and 1 channel MPTS output as well as 127 SPTS output, 128 IP address input.With the characteristics of high integration, high performance and low cost, a single device integrated a set of front-end system functions.

Product Features

support 4/8 channels  inp

ut

 support gigabit IP input/out 1 road, UDP/RTP protocol (multicast)

 support different carrier modulation (ATSC, ISDBT, DTMBT, DVB - C/T) to choose the output

 support ASI 1 channel input

 support 1 channel ASI output

 support LCD and the keyboard

support network management (Web) to support online upgrade

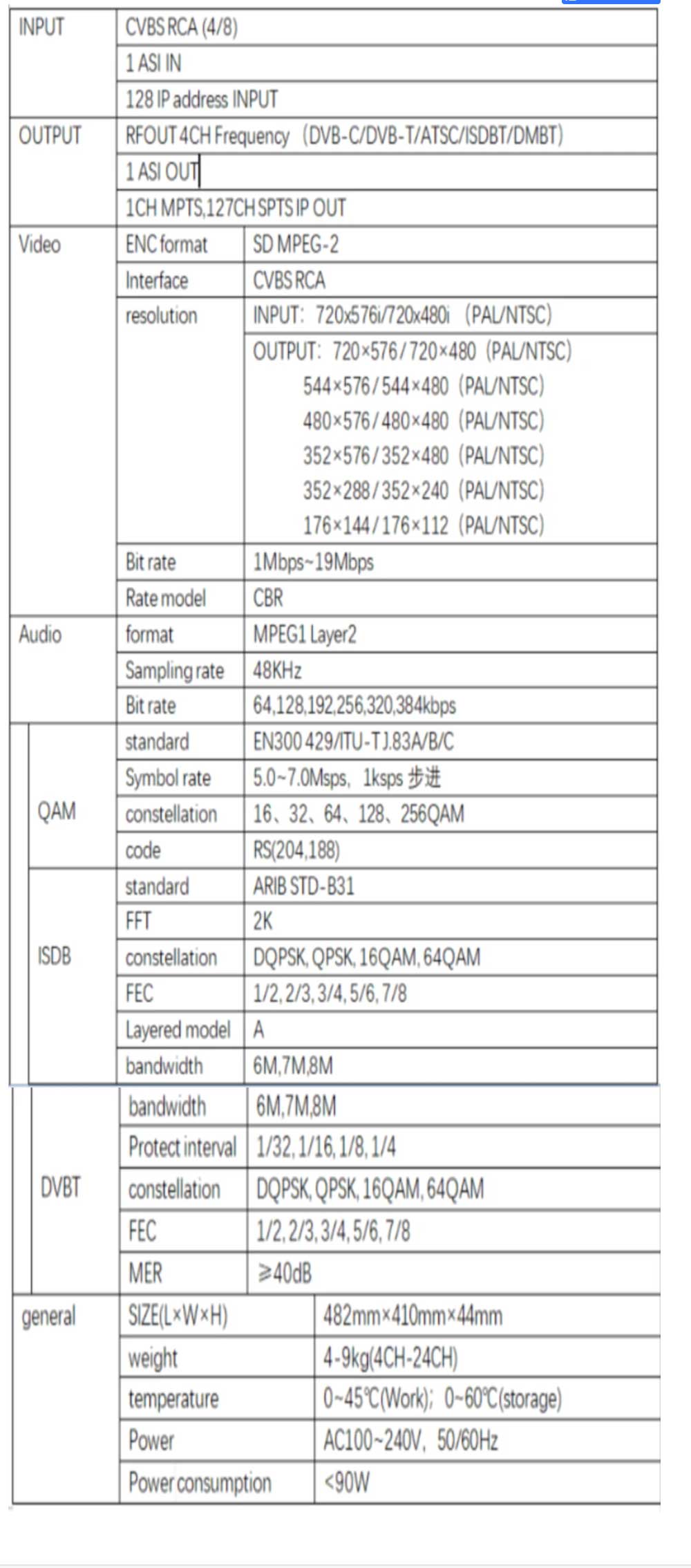

Product Parameter
