TX2408X-9E series
Tuner To Modulator
User’s Manual
V1.22

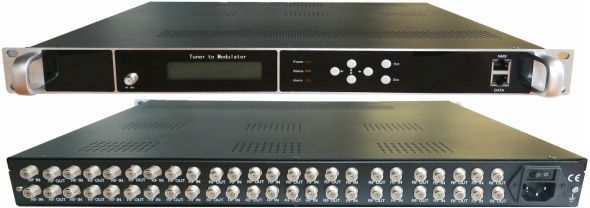

TX2408X-9E
TX1208A-9E
1 Product Overview
The TX2408X-9E series is the latest cost-effective Tuner to modulator. It supports 4-24 tuner inputs(support different types of tuner ( DVB-S2、DVB-C、DVB-T、 ATSC、 DTMBT、ISDBT, etc. ) ), 1 channel Gigabit IP input / output; 8 channel(ATSC、ISDBT、DTMBT、DVB-C/-T) output,1 MPTS output.With high integration, great performance and low cost, Integrating a complete front-end system functions, this device is highly welcomed in small digital TV transmission systems such as hotels, clubs, hospitals,etc.
2 Key Features
● 4-24 channels Tuner input(support DVB-S2 ISDBT DTMBT DVB-C/-T etc)，The number of channels you can choose is a multiple of 4
● 1 Gigabit IP input/output, 128 SPTS input and 1 MPTS output, UDP/RTP protocol (multicast)
● All standard modulation (ATSC、ISDBT、DTMBT、DVB-C/-T) output optional.
● Web network management
● Support online software upgrading
3 Specifications
Input | Tuner(4/8/12/16/20/24 Tuner) |
1 Gigabit IP input/output，128 SPTS input |
Output | RF output 8 frequencies（DVB-C/DVB-T/ATSC/ISDBT/DMBT） |
1 MPTS IP output |
DTMBT | Standard | DTMB GB20600-2006 |
Constellation | 4QAM、16QAM、32QAM、64QAM |
MER | ≥37dB |
RF frequency | 96~864MHz，1kHz step |
RF output level | -30dBm~0dBm，0.1dB step |
DVB-T | Standard | EN300744 |
FFT | 2K |
Bandwidth | 6M, 7M, 8M |
Constellation | DQPSK, QPSK, 16QAM, 64QAM |
Guard Interval | 1/4, 1/8, 1/16, 1/32 |
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
MER | ≥37dB |
RF frequency | 96~864MHz, 1KHz step |
RF output level | -30~0dBm, 0.1db step |
DVB-C | Standard | EN300 429/ITU-T J.83A/B/C |
MER | ≥37dB |
RF frequency | 96~864MHz, 1KHz step |
RF output level | -30~0dBm , 0.1dBm step |
SR | 5.0Msps~7.0Msps, 1ksps step |
Constellation | 16/32/64/128/256QAM |
ATSC | Standard | ATSC A/53 |
MER | ≥37dB |
RF frequency | 96~864MHz, 1KHz step |
Constellation | 8VSB |
ISDBT | Standard | ARIB STD-B31 |
FFT | 2K |
Constellation | DQPSK, QPSK, 16QAM, 64QAM |
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
Hierarchical mode | A |
Bandwidth | 6M |
System | Web/NMS |
中文/English |
Miscellaneous | Dimensions | 482mm×410mm×44mm |
Weight | 4-8kg（4-24 channel） |
Temperature | 0~45℃(Operation)；-20~80℃(Storage) |
Voltage range | AC100~240V，50/60Hz |
Power consumption | <90W |

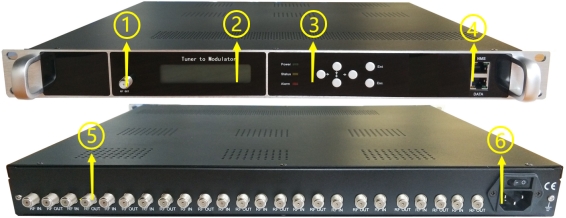

4 Front / Rear Panel
1. | RF Out |
2. | LCD Display |
3. | Buttons and Indicator lights |
4. | NMS、DATA Input/ output |
5. | Tuner input |
6. | Power |
