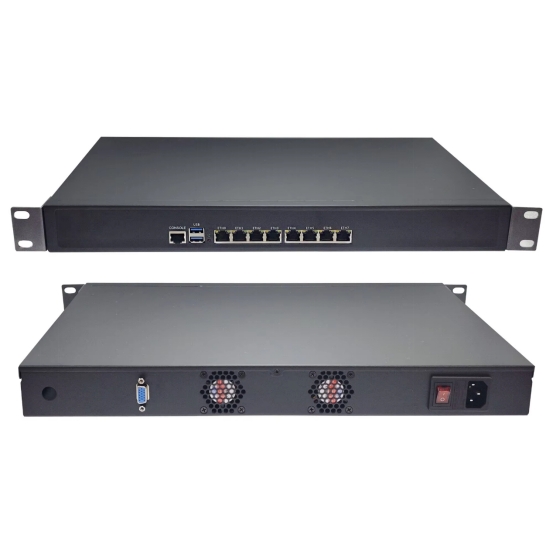

TY-1001

Outline

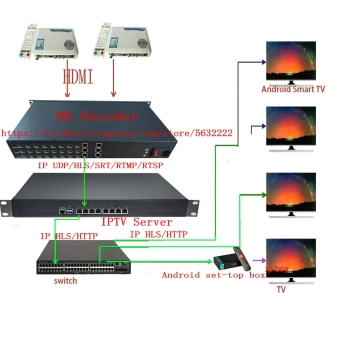

The IPTV Gateway is a device for protocol conversion scenarios and streaming media distribution scenarios. It can output via HTTP, UDP, HLS streaming protocols The device is accompanied by an apk for installation and use, which supports TS files as well as udp rtp rtsp http hls rtmp srt conversion to HTTP, UDP and HLS output. The system can be integrated by receiving multiple commercial streaming services. The system can also provide streaming services directly.

Parameterisation

Input

Customized network port for IP input and output

Upload TS files via network management

Support mpts to spts spts to spts

IP Output

HLS via HTTP (unicast), UDP (SPTS, multicast) Data Port (1000M) IP Output

IP output via HTTP/ HLS/UDP via CH 1-7 (1000M)

System

CPU: (i5/I7 optional)

Memory: 8G

Solid State Disk (SSD): 32G (60G optional)

Channel switching time with STB: HTTP (1-3 seconds), HLS (0.4-0.7 seconds)

Support adding scrolling subtitles, welcome message, boot image

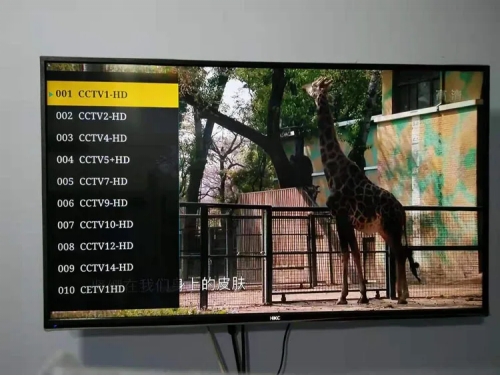

Play programs on Android STBs and TVs using downloaded APKs, up to 300/800 terminals (please refer to the following test data for details)

Supports about 150 HD/SD programs (bit rate: 2-8Mbps) When converting HTTP/RTP/RTSP/HLS to UDP (multicast), depending on the actual application, it is recommended that the CPU utilization does not exceed 80%.

Web-based NMS management via DATA port

General

Dimensions

482 mm × 324 mm × 44 mm (W × L × H)

Operating Temperature

0~45°C (operation), -20~80°C (storage)

Power supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

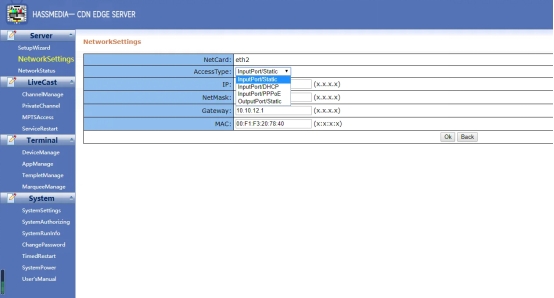

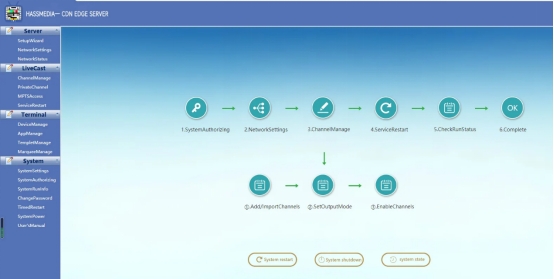

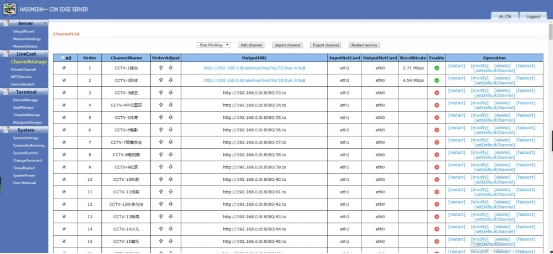

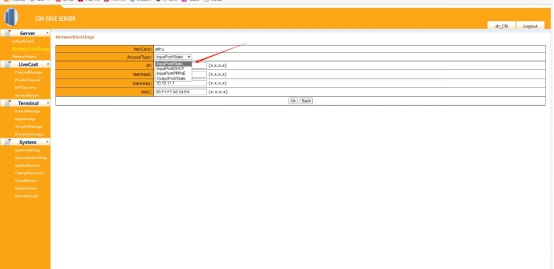

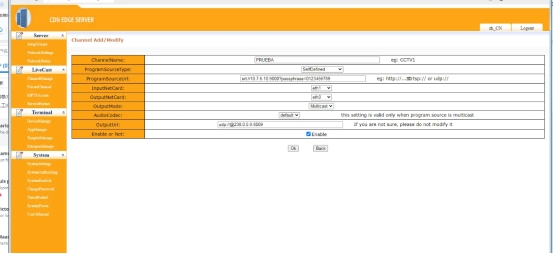

Product system interface (optional)
