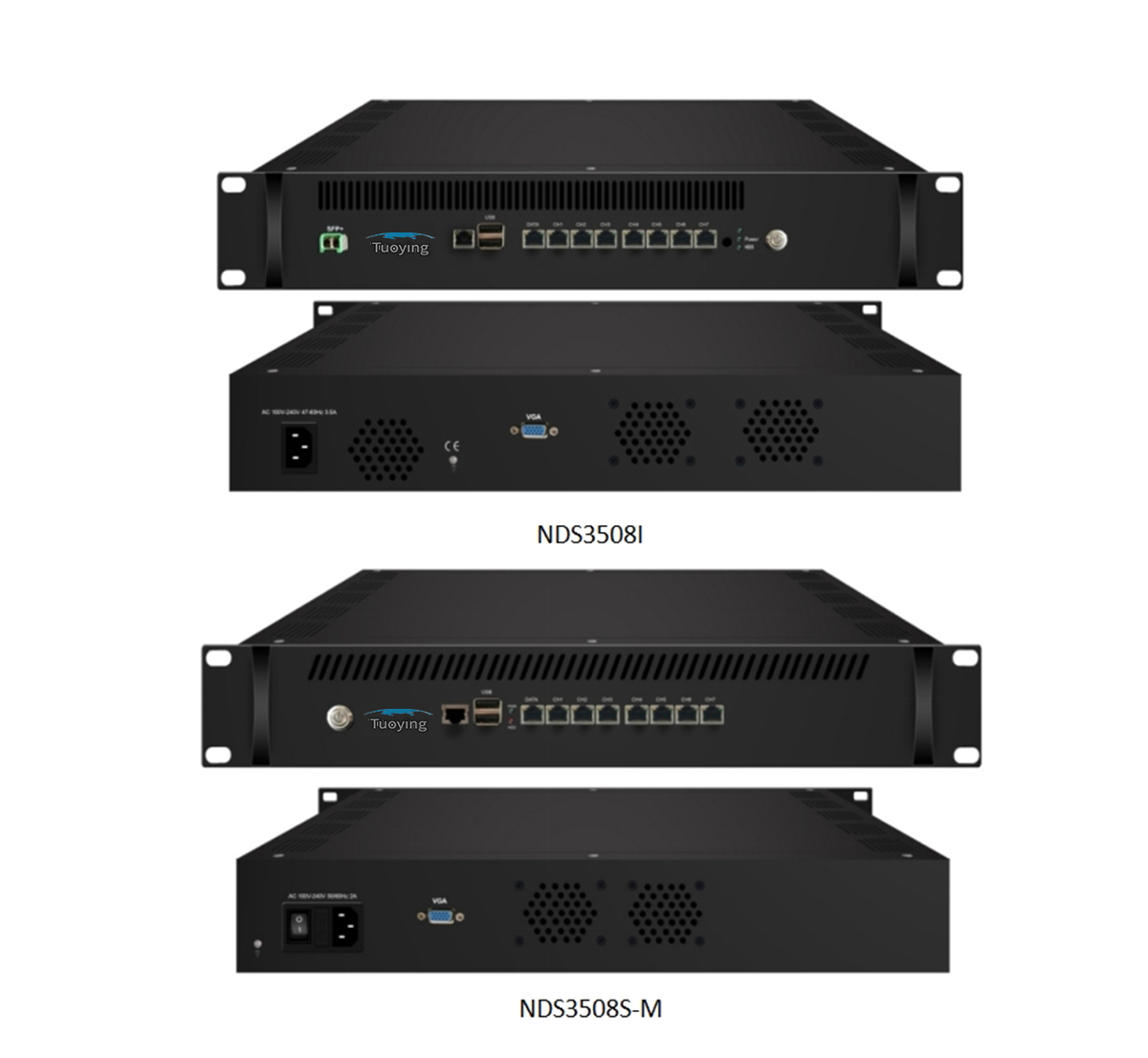

Tuoying NDS3508S/NDS3508I IPTV Gateway Server is the newest device which combined with IP Gateway and IPTV server in one unit. It is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT, HTTP, UDP, RTP, RTSP and HLS and TS file into SRT, HTTP, UDP, HLS and RTMP protocol.In addition, it integrates
IPTV system and users can upload VOD source on it with huge memory. In conclusion, this full function device makes it ideal for small CATV head end system, especial in hotel TV system …
Key Features
● IP Gateway + IPTV server in one device
● Manage gateway and IPTV server separately
● SRT, HTTP, UDP, RTP, RTSP and HLS in →SRT, HTTP, UDP, HLS and RTMP out
● IPTV Functions: Live channel, VOD, Hotel intro, Hotel service, Scenery intro, APPS, and so on
● Adding scrolling caption, welcome words, pictures, advertisement, video, music in main interface
● TS files uploading through Web management
● IP anti-jitter function
● Downloading Dexin IPTV APK directly from this device
● Support program playing with APK downloaded android STB and TV
● Control via web-based NMS management through DATA port
IP Protocol Conversion
IP Protocol Conversion

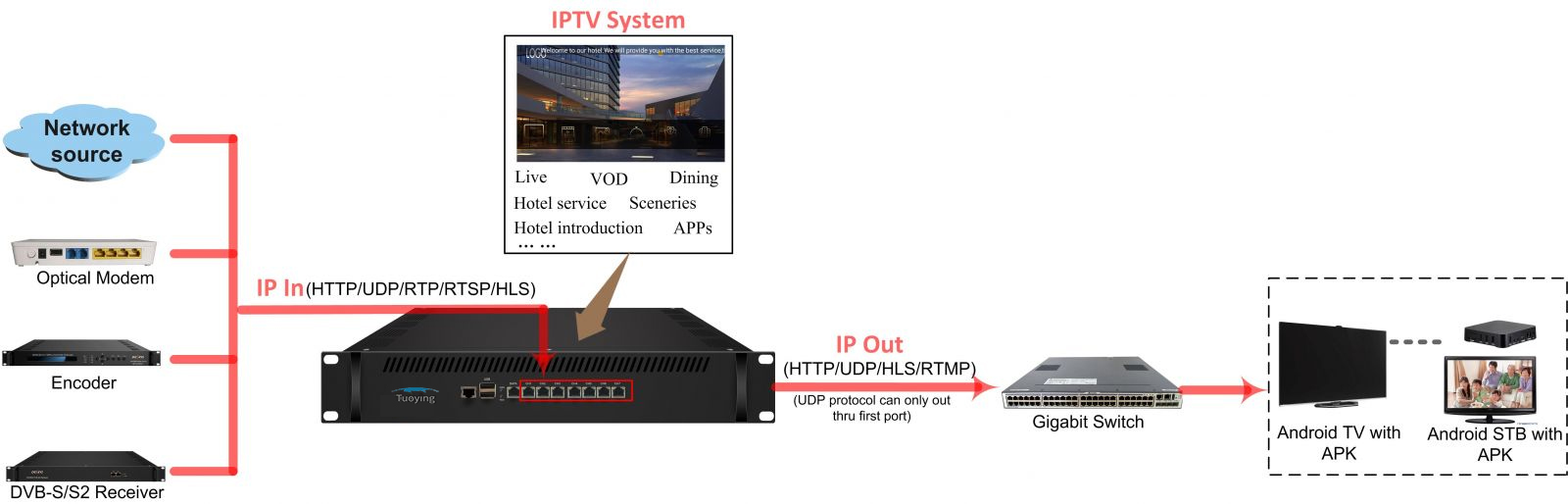

General Principle Chart
Specifications
IP Input | DATA CH 1-7 ( 1000M) ports: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
TS files uploading through Web management |
IP output | First Data port ( 1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) |
DATA CH 1-7 ( 1000M) ports: IP out over HTTP/HLS/RTMP (Unicast) SFP+ output 10000M (for NDS3508S-I and NDS3508I) |
System | Channel switching time with DEXIN ’ STB: HTTP ( 1-3s), HLS (0.4-0.7s) |
Play programs with APK downloaded android STB and TV |
About 80 HD/SD programs (Bitrate at 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization |
IPTV system function | support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install Dexin IPTV APK) |
IPTV system main interface | support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install Dexin IPTV APK) |
web-based NMS management thru DATA port |
General | Demission | 482.6mm×328mm×88mm (WxLxH) |
Temperature | 0~45℃(operation), -20~80℃(storage) |
Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
Test data for reference:
Protocol Conversion | Programs | Bitrate | Terminals | CPU Utilization |
NDS3508S-M | NDS3508I |
HTTP/RTP/R TSP/HLS to UDP | 80 | 2M | --- | --- | 55% |
HTTP to HTTP | 30 | 2M | 300 | 600 | 80% |
50 | 2M | 160 | 320 | 80% |
HTTP to HLS | 50 | 2M | 400 | 800 | 46% |
UDP to HLS | 50 | 2M | 400 | 800 | 50% |
80 | 2M | 300 | 600 | 72% |
UDP to HTTP | 50 | 2M | 240 | 480 | 50% |
UDP to SRT | 50 | 2M | --- | --- | 50% |
UDP to SRT | 50 | 2M | --- | --- | 75% |
Order Guide:
Model No. | Feature | SFP+ | Memory | CPU | Solid-State Disk (SSD) | Mechanical Hard Disk |
NDS3508F-M | Gateway+IPTV server | / | 8G | i5/i7 (3rd Generation) | 120G/240G random | / |
NDS3508S-M | Gateway+IPTV server | / | 8G | i5/i7 (3rd Generation) | 120G/240G random | 4T |
NDS3508S-I | Gateway+IPTV server | 1 | 8G | i3 (6th Generation) | 120G/240G random | / |
NDS3508I | Gateway+IPTV server | 1 | 16G | i7 (6th Generation) | 120G/240G random | 4T |
