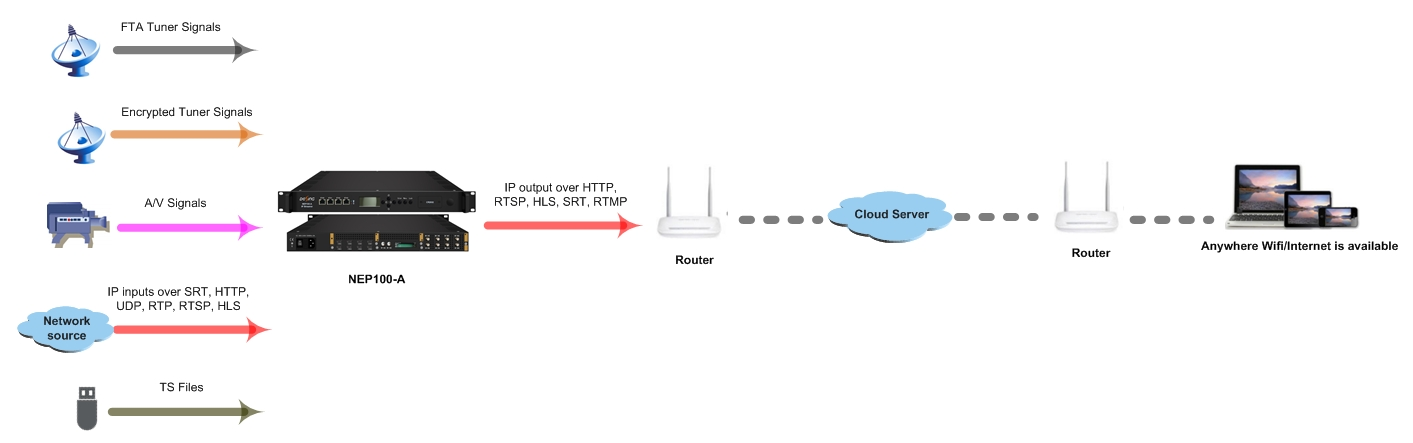

Application Example
IPTV System as a Server
Protocol Conversion as a Streamer
Outline

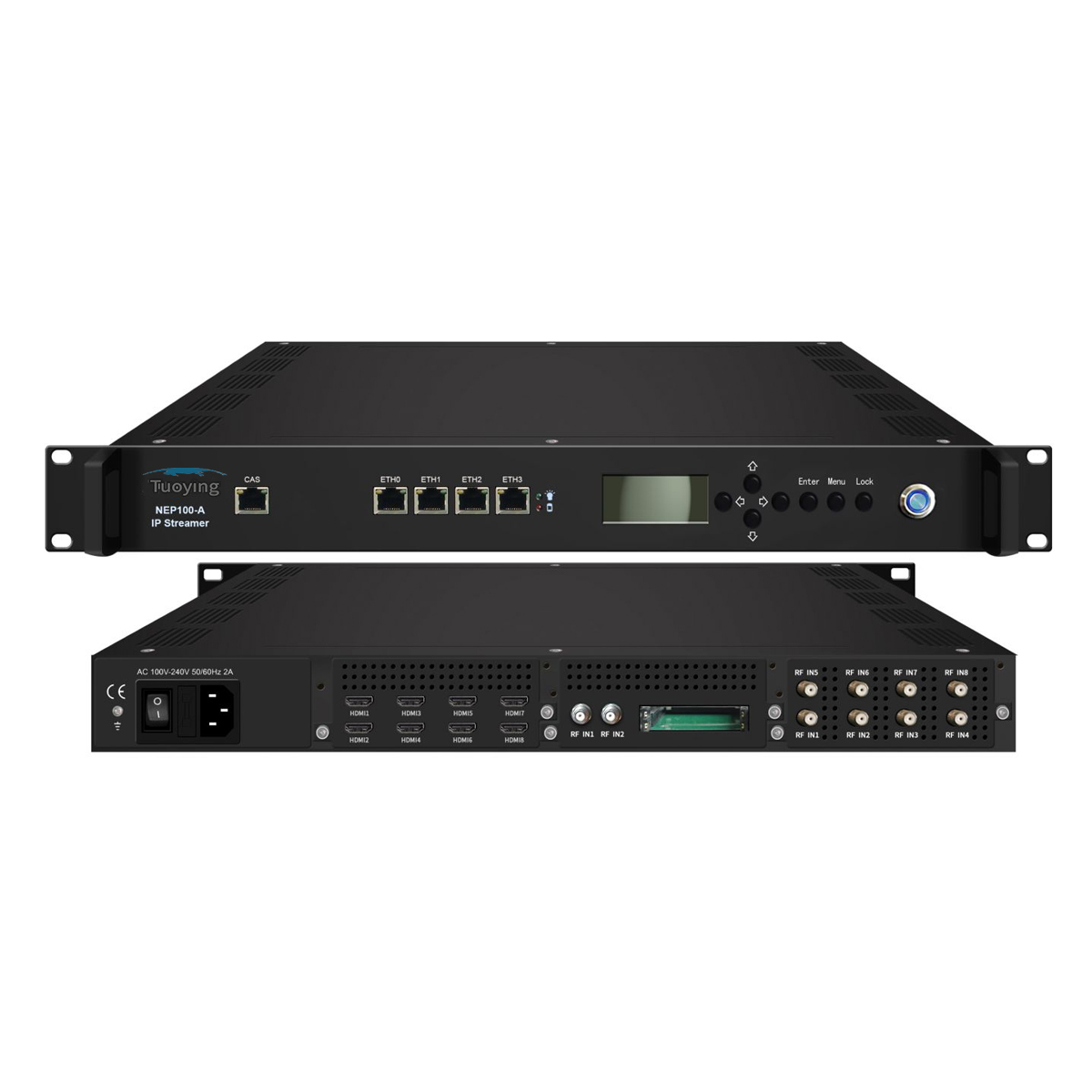

NEP100-A is a flexibly modularized 1U device with the features of Encoder/Receiver, IP Gateway and IPTV Server for the protocol-conversion application and IPTV-system application. It can get max 3 pluggable streamer cards embedded, such as encoder card and tuner card to receive the HDMI signals and tuner signals etc. It can also convert the input IP streams from the embedded modules and Ethernet ports over SRT, HTTP, UDP, RTP, RTSP, HLS protocol and TS files into the output IP streams over SRT, HTTP, UDP, RTP, RTSP, HLS and RTMP protocol. It is also integrated with Dexin IPTV management software and Streamer cards to make it ideal in an IPTV system, such as hotel, hospital and community.
Key Features
● Encoder/Receiver, IP Gateway and IPTV Server in one device
● 2 separate Web GUI, one for Cards and Gateway, the other for IPTV Server
● 4 Ethernet ports(GE), customized Ethernet port setting is available
ETH0: IP output over SRT, HTTP, UDP (SPTS), RTP, RTSP, HLS and RTMP ETH1&2: IP input over SRT, HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS ETH3: Web Management Port
● Support uploading TS files directly in Web GUI to broadcast your own channels
● Support inter-cut feature of a live program, a TS file and a picture
● Support IP anti-jitter feature for the external IP streams
● IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS,
Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are
only applicable to IP out application in the STB/Android TV installed with Dexin IPTV APK)
● Support downloading Dexin IPTV APK directly in the Web GUI
● It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec)
● It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV installed with Dexin IPTV APK, and the
actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec)
● Multi-level password control for your system security
● LCD/Key button for Network-Setting checking
● Modularized design, max 3 cards embedded, a flexible option as per the actual application
IP Protocol Conversion (example)
Specifications
Input | IP inputs thru ETH 1&2, GE ports over SRT,HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
TS files uploading through Web management |
Encoder card and Tuner card etc (Please refer to the detailed card spec below) |
IP output | IP outputs thru ETH0, GE port over SRT, HTTP (Unicast), UDP(SPTS, Multicast) , RTP, RTSP, HLS and RTMP (Program source should be H.264 and AAC encoding) |
System | Channel switching time with DEXIN ’ STB: HTTP ( 1-3s), HLS (0.4-0.7s) |
It is closely related with the program bitrate and protocol type etc for Max program numbers involved in protocol conversion, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) |
It is closely related with the program bitrate and protocol type etc for Max affordable terminal numbers in IPTV application of the STB/Android TV |
| installed with Dexin IPTV APK, and the actual application shall prevail with maximum 80% CPU utilization (Please refer to Test data for reference in the end of the spec) |
IPTV Features: Live channel, VOD, Hotel intro, Dining, Hotel service, Scenery intro, APPS, Adding scrolling caption, welcome words, pictures, advertisement, video, music etc (the features are only applicable to IP out application in the STB/Android TV installed with Dexin IPTV APK) |
General | Demission | 482mm×464mm×44mm (WxLxH) |
Temperature | 0~45℃(operation), -20~80℃(storage) |
Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
Available Card Specification (more available cards later for development)
DX902A 2 Tuner Descrambling Card
Stream in:
2 Tuner input, F Type, Stream out:
16 SPTS output over UDP/RTP DVB-CI:
2 independent common interface slots Standard:
DVB-S/S2/S2X;
DVB-S
Input Frequency: 950-2150MHz Symbol Rate: QPSK 1~45Msps Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps 16APSK 1~45 Msps
32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/ 10
DVB-S2X
Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/ 16APSK 0.5~45 Msps;
8APSK/32APSK: 0.5~40Msps FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/ 10, 23/36, 25/36, 13/ 18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10, 1/2-L, 8/ 15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/ 18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/ 15, 7/9
Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
DX942A 4 frequencies Descrambling Card
Stream in:
4 frequencies input (each RF in interface for 2 frequencies locking), F Type, Stream out:
16 SPTS output over UDP/RTP DVB-CI:
2 independent common interface slots
Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B Input Frequency: 60MHz~890MHz Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/ 128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz Bandwidth: 5/6/7/8M bandwidth PLP supported for DVB-T2
Standard: ISDB-T
Input Frequency: 60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; 32 BISS Keys
DX228S 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP …P (P Frame adjustment, without B Frame) Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment
Sampling rate: 48 KHz
Audio Bit-rate:
MPEG-1 Layer 2: 48/56/64/80/96/ 112/ 128/ 160/ 192/224/256/320/384 kbps LC-AAC: 48/56/64/80/96/ 112/ 128/ 160/ 192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/ 112/ 128 kbps Support Logo, Caption, QR Code insertion
DX228S-V2 8 HDMI Encoder Card
Input: 8*HDMI (4 HDMI is available)
Output: 8*SPTS (4 SPTS if4 HDMI) output over UDP/RTP/RTSP, Unicast/Multicast
Video Encoding:
Video format: HEVC/H.265, MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP …P (P Frame adjustment, without B Frame) Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, LC-AAC, HE-AAC and AC3 Pass through, support audio gain adjustment
Sampling rate: 48 KHz
Audio Bit-rate:
MPEG-1 Layer 2: 48/56/64/80/96/ 112/ 128/ 160/ 192/224/256/320/384 kbps LC-AAC: 48/56/64/80/96/ 112/ 128/ 160/ 192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/ 112/ 128 kbps Support Logo, Caption, QR Code insertion
DX908 8 FTADVB-S/S2/S2X Tuner Card
Stream in: 8 Tuner input, F Type,
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast Tuner input: DVB-S/S2/S2X
Symbol rate: QPSK/8PSK/ 16APSK 0.5~45 Msps; 8APSK/32APSK: 0.5~40Msps Input Frequency: 950-2150MHz
DVB-S Constellation: QPSK
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Constellation: QPSK/8PSK/ 16APSK/32APSK
FEC Demodulation:
QPSK: 1/2, 2/3, 3/4, 5/6, 3/5, 4/5, 8/9, 9/ 10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/ 10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/ 10
DVB-S2X Constellation: QPSK/8PSK/8APSK/ 16APSK/32APSK FEC Demodulation:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/ 10, 23/36, 25/36, 13/ 18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/ 10, 1/2-L, 8/ 15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/ 18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/ 15, 7/9, 9/ 10 Support Diseqc function
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Key
DX928 8 FTADVB-C/T/T2/ISDB-T Multi-Mode Tuner Card
Stream in: 8 tuner input, F Type
Stream out: 512 SPTS out over UDP/RTP/RTSP, Unicast/Multicast
Tuner input: DVB-C (J.83 A/C)/J.83B/ DVB-T/DVB-T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/ 128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index: 0~255 for DVB-T2
Standard: ISDB-T
Input Frequency: 60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), generate PSI/ SI table automatically
Descrambling:
BISS Mode: Mode 1, Mode E; up to 120Mbps, 32 BISS Keys
Test data for reference:
Protocol conversion | Programs | Bitrate | Terminals | CPU utilization |
UDP to HTTP | 60 | 8M | 100 | 80% |
UDP to HLS | 60 | 8M | 120 | 65% |
UDP to HTTP | 60 | 2M | 400 | 80% |
UDP to HLS | 60 | 2M | 400 | 40% |
UDP to SRT | 45 | 8M | --- | 80% |
UDP to RTMP | 50 | 8M | --- | 80% |
