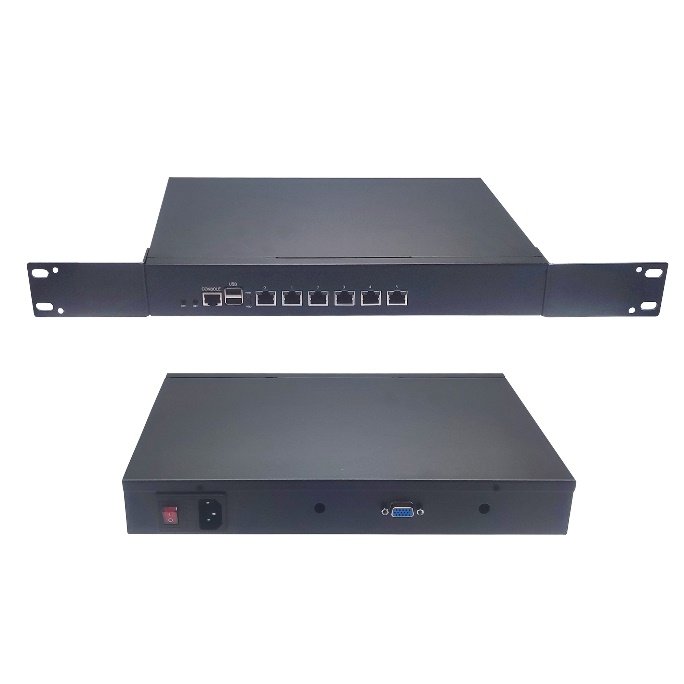

TY-1002

Outline

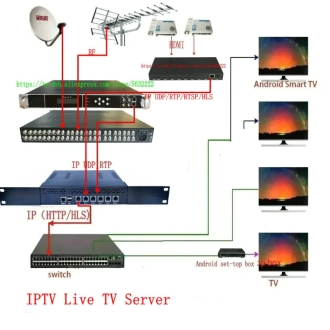

The IPTV Gateway is a device for protocol conversion scenarios and streaming distribution scenarios. It converts broadcast network IP streams and TS files to HTTP, UDP, RTP, RTSP, and HLS over HTTP, UDP, RTP, RTSP, and HLS.The system can be integrated by receiving multiple commercial streaming services. The system can also provide streaming services directly. Support for Live (optional) On-demand (optional) Support for 300 users. memory 8g. SSD 32g/60g/64g/128g optional. Mechanical hard disc 4T optional. Central Processing Unit (CPU): i5/i7/i3.

Product Parameter

Input

IP input via HTTP, UDP (SPTS), RTP (SPTS), RTSP (via UDP, payload: mpeg TS) and HLS via CH 1-7 (1000M)

Upload TS files via network management

IP Output

HLS via HTTP (unicast), UDP (SPTS, multicast) Data Port (1000M) IP Output

IP Output via HTTP/ HLS/UDP via CH 1-5 (1000M)

System

CPU: i3/i5/i7

Memory: 8G

Solid State Drive (SSD): 32G/60G/64G/128G

Mechanical hard drive: 4T

Live/VOD support

Channel switching time with STB: HTTP (1-3 seconds), HLS (0.4-0.7 seconds)

Support adding scrolling subtitles, welcome message, boot image

Use downloaded APK to play programmes on Android STBs and TVs, up to 300 terminals (please refer to the following test data for details)

Supports about 80-100 HD/SD programmes (bit rate: 2-8Mbps) When converting HTTP/RTP/RTSP/HLS to UDP (multicast), it depends on the actual application, and it is recommended that the CPU utilisation does not exceed 80%.

Web-based NMS management via DATA port

General

Dimensions

330 mm × 185 mm × 44 mm (W × L × H)

Operating Temperature

0~45°C (operation), -20~80°C (storage)

Power supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Main Functions

* 6 data ports:

First data port: IP output via HTTP, UDP (SPTS), HLS

Data CH1-5 ports: IP input via HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS

IP Output via HTTP, HLS, and UDP

* Supports uploading TS files via network management

* Supports IP Anti-Jitter function

* Supports adding scrolling subtitles

* Supports downloading IPTV APK directly from the device.

* Support about 80-100 HD/SD programmes (bit rate: 2-8Mbps), HTTP/RTP/RTSP/HLS to UDP (multicast), depending on the actual application, it is recommended that the CPU occupancy rate does not exceed 80%.

* Supports APK download for Android set-top box and TV programme broadcasting, and can support up to 300 terminals.

* Web-based NMS management control via DATA port.

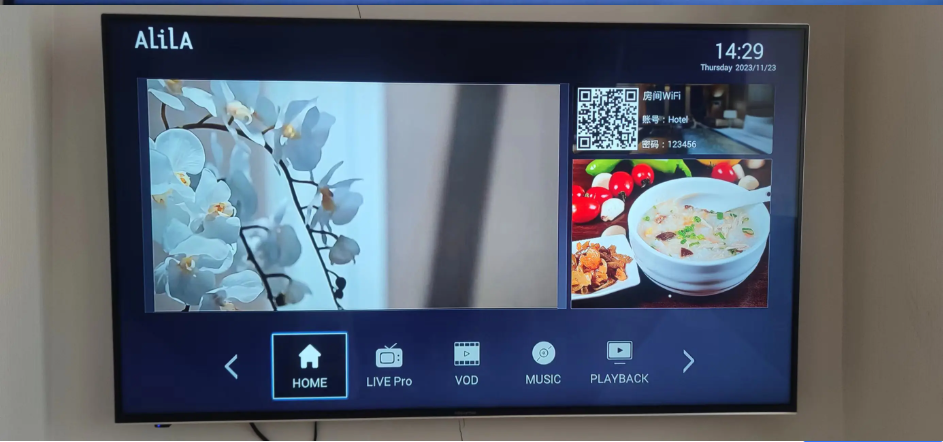

Product Live Interface

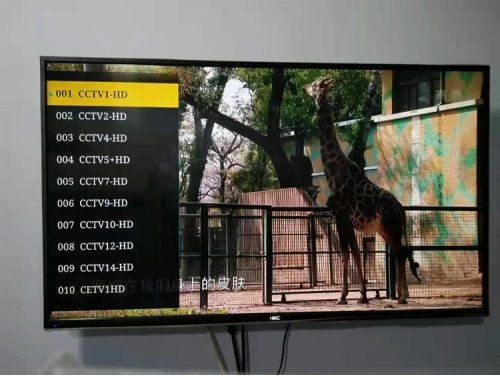

Product on Demand Interface
