Outline

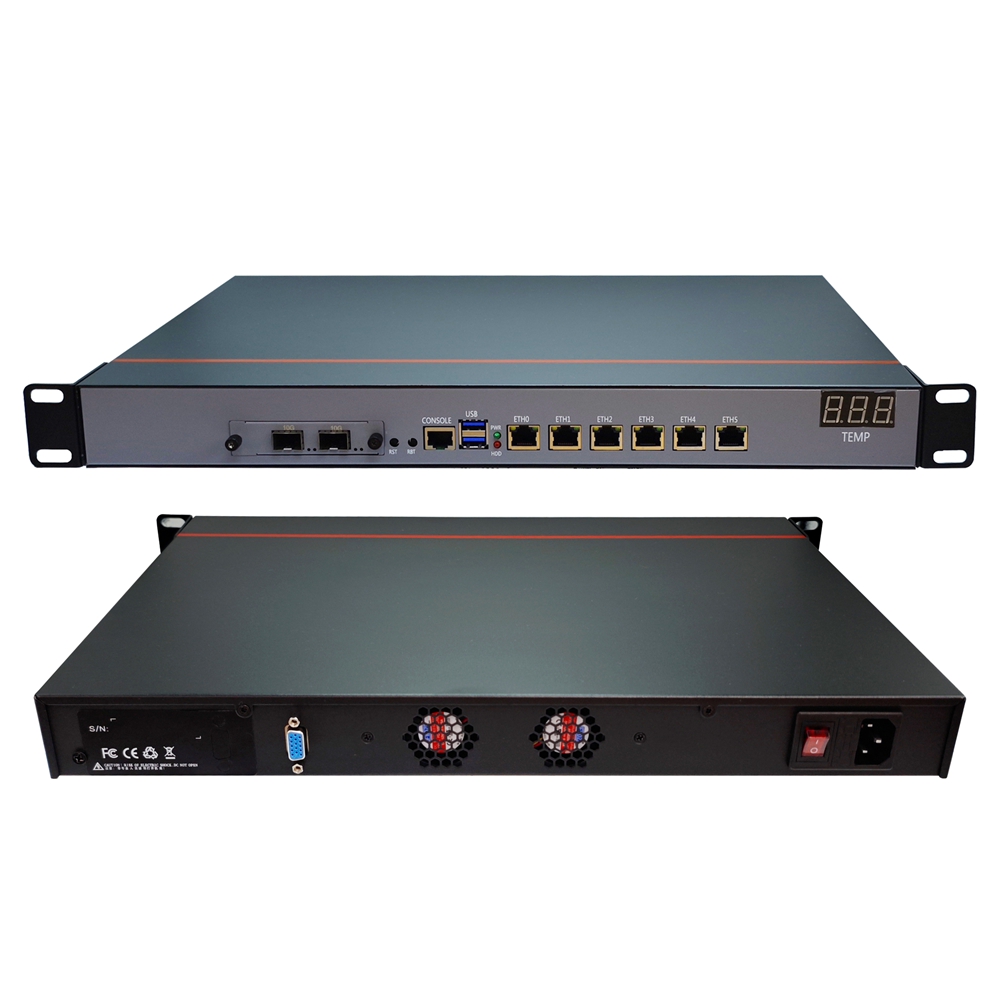

TUOYING IPTV Gateway Server is the newest device which combined with IP Gateway and IPTV server in one unit. It is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. In addition, it integrates IPTV system and users can upload VOD source on it with huge memory. In conclusion, this full function device makes it ideal for small CATV head end system, especia l in hotel TV system…
Product Features
1. This device can collect IPTV unicast and multicast signal sources and transmit the live signal to the terminal through forwarding. The terminal can watch TV normally by installing the supporting APK. 2.
2. The signal output mode of the device can be customized as unicast, multicast or HLS. 3.
3. The device can receive multi-program streams MPTS and SPTS from satellite receivers or other devices, and supports MPTS to SPTS output.
2) The access types that can capture operator IPTV signals are DHCP, Fixed IP or PPPoE. if PPPoE is used, you need to provide the account number and password for IPTV service.
3) The acquisition of the operator's IPTV signal source and the determination of the specific type need to be determined through packet capture analysis.
5. the device can create loop channels (self-built channels)
6. terminal (set-top box or TV set) to install the device supporting Apk, web background can download apk.
IPTV Gateway is a device for protocol conversion scenarios and streaming media distribution scenarios. It converts IP streams as well as TS files over HTTP, UDP, RTP, RTSP, SRT RTMP and HLS networks to HTTP, UDP and HLS output.
Support iptv http udp rtp rtsp hls ip ts http udp hls srt rtmp
Product Parameter
Input

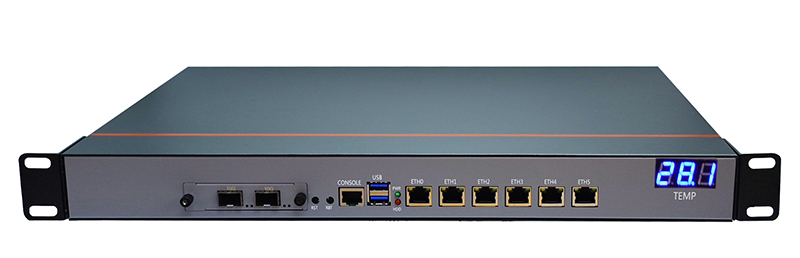

Supports HTTP, UDP (SPTS/MPTS), RTP (SPTS/MPTS), RTSP/srt/rtmp and HLS input, IP input via ETH 0-eth5 (1000M) + 2 10Gb ports
TS file upload via network management
IP Output
IP Output via HTTP, HLS (unicast), UDP Total 6 Gigabit ports + 2 10 Gigabit ports on the device
System
CPU: I7
Memory: 8G
Solid State Disk (SSD): 32G (64G optional)
Channel switching time with STB: HTTP (1-3s), HLS (0.4-0.7s)
HTTP1-3sHLS0.4-0.7s
Support adding scrolling subtitles, boot image
Playing programs using downloaded APKs, Android STBs and TVs can support up to 500-1000 terminals (please refer to the following test data for details)
Supports about 150 HD/SD programs (bit rate: 2-8Mbps), HTTP/RTP/RTSP/HLS conversion to UDP

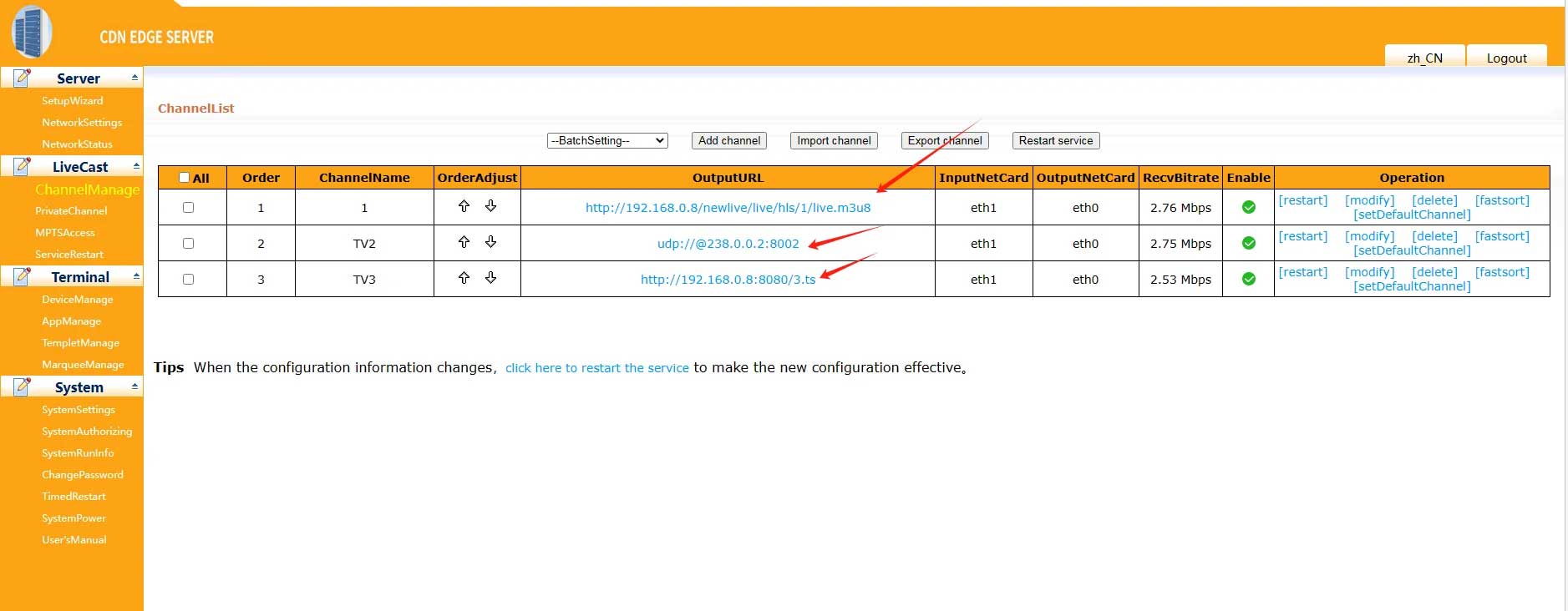

Web-based NMS management

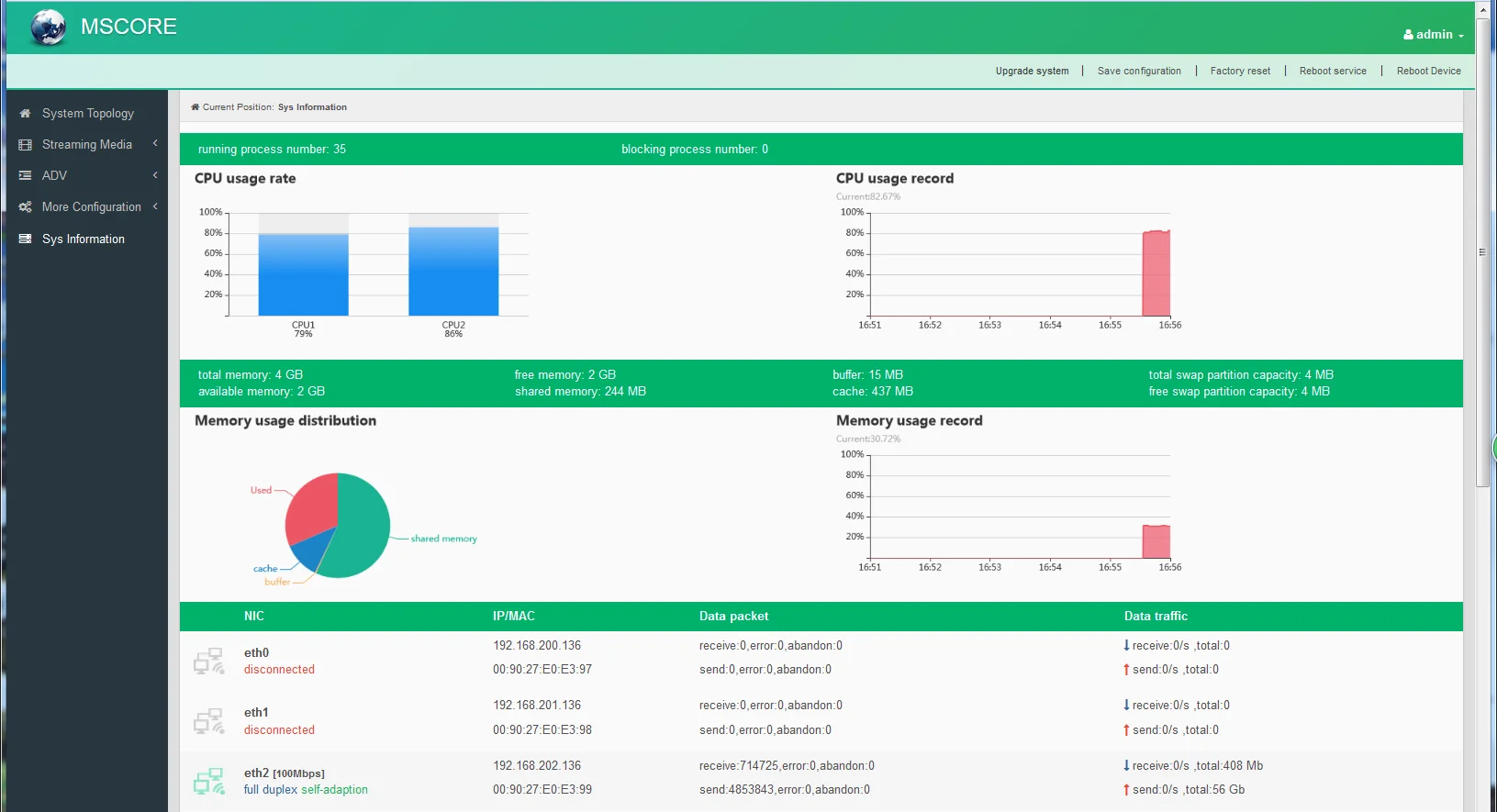

system interface
