Product Description

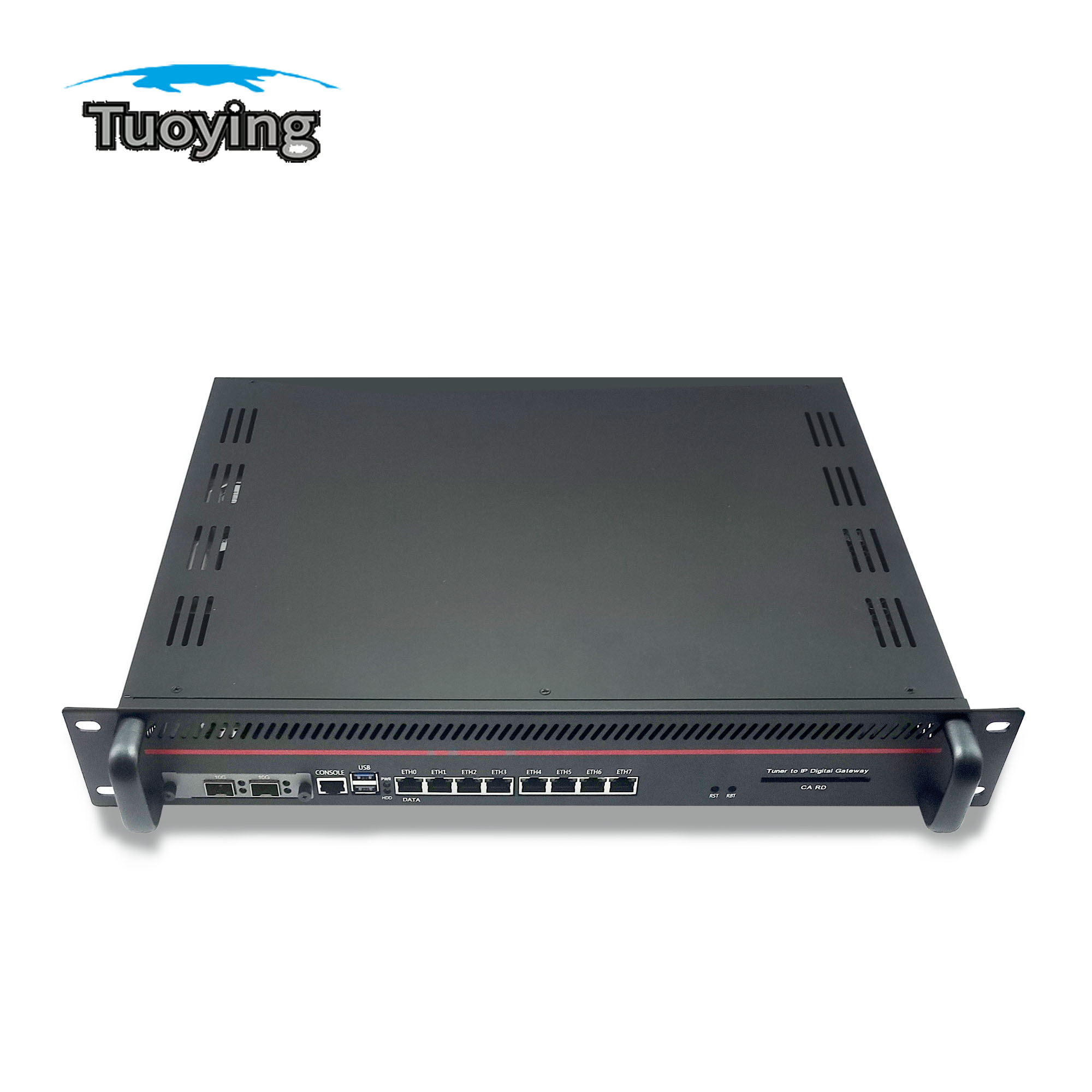

TY1005 is a small card machine combined with IPTV server. It is a new model on the market. It is our newly developed equipment. The function is very powerful. Very suitable for digital TV system
Key Features
* IPTV Gateway + IPTV server in one device
* Manage gateway and IPTV server separately
* HTTP, UDP, RTP, RTSP and HLS in→HTTP, UDP, HLS 1 and RTMP out
* IPTV Functions: Live channel,
* TS files uploading through Web management
* IP anti- jitter function
* Downloading DS IPTV APK directly from this device
* Support program playing with APK downloaded android STB and TV, maximum 300/500 terminals
* Control via web-based NMS management through DATA port
*AC descrambling is supported for legal irdeto access (Ideide), NDS, agravvision Viaccess, Norwegian Conax, Chinese Digital Video, Yongxin DX, and others. Please note that not all encryption versions are supported as there are many versions of each encryption system.
*Support oscam shared account decryption
Product Parameter
IP Input
DATA CH 1-7(1000M) ports: IP input over HTTP, UDP(SPTS),RTP(SPTS),
RTSP (over UDP, payload: mpeg TS) and HLS
TS files uploading through Web management
IP output
First Data port (1000M): IP out over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
DATA CH 1-7(1000M) ports: IP out over HTTP/HLS/RTMP (Unicast)
System
Memory
8G
CPU
i7
Solid-State Disk(SSD)
128G
Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s)
Play programs with APK downloaded android STB and TV, maximum 300 terminals(See details in below Test data for reference)
About 90 HD/SD programs When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
IPTV system function
Live channel, self-produced programmes

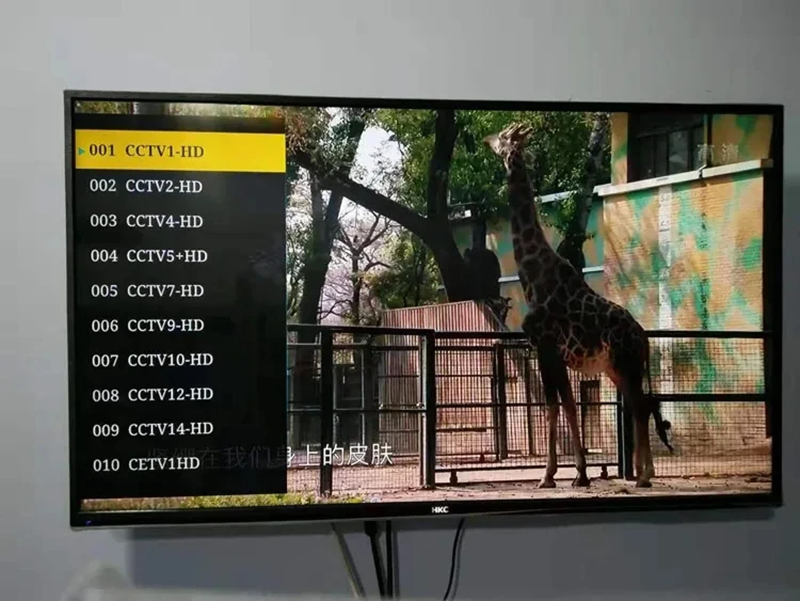

IPTV system main interface
web-based NMS management thru DATA port
General
Demission
482.6mm×328mm×88mm (WxLxH)
Temperature
0~45℃(operation), -20~80℃(storage)
Power Supply
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
The 8-channel digital receiver is a high-performance, low-cost receiver developed by our company specifically for digital TV signal sources in commercial premises. The device supports 10+10 tuner receivers with 10 decoders only. The unit is high performance, low cost and designed with a plug-in structure, allowing modules to be replaced as required. It is ideally suited to digital television used in front-end systems such as hotels, clubs and schools.
It supports DVB-S/S2/ T2/ DVB-C RF signal input, IP multicast signal output (rtp, udp) and http/RTSP unicast signal output, and supports French irdeto access (Ideide), NDS, agravvision Viaccess, Norwegian Conax, Chinese digital video, Yongxin DX and other AC descramblers. Please note that as there are many versions of each encryption system, not all encryption versions are supported.
CASE:
IRDETO
VIACCESS
NAGRA
NDS
CONAX
CANALPLUS
SAFEVIEW
TF
SUMA
ST
TOPREAL
UNITED TEC
TB
GRIFFIN
SECA
BISS
POWERVU
User Defined

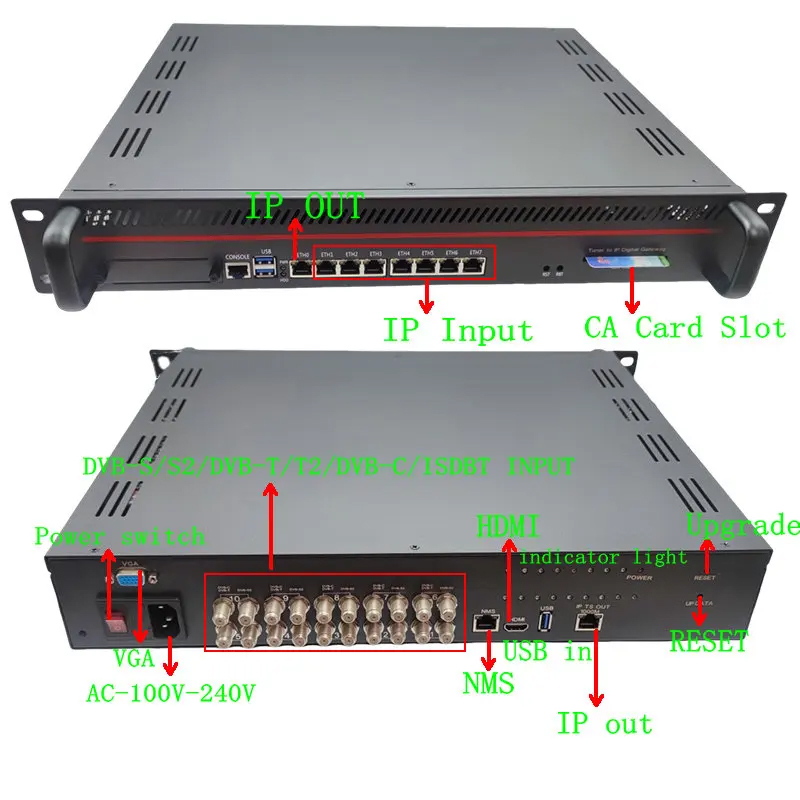

Main featuresSpecification
10xDVB-S/S2/T/T2/DVB-C/ISDBT inputs
One 100Mbps Ethernet
1gbps Ethernet
USB 2.0 interface
Support IPTV input
Support multimedia files on USB disk
Support BISS/PowerVU/SMART card
Specifications
System resource information
OS Linux operating systems
Hisilicon Hi3798CV200 processor/decoder
256 MB Nand Flash memory
4 GB DDR3 SDRAM memory
DVB tuner and demodulator
R848 tuner chipset
Demodulate AVL6862 chipset
Demodulate DVB-S,DVB-S2, DVB-T, DVB-T2, DVB-C standard
Input impedance 75Ω
DVB-S2/S frequency range 950 to 2150MHz
LNB power and vertical polarization 13VDC;Horizontal 18VDC @ 400mA (max)
Tone 22KHz ± 0.4KHz(0.6V ± 0.2V), Overload protection
Input level range 65dbm - 25dbm
Demodulation DVB-S2/S QPSK, 8PSK
DVB-S/S2 symbol rate 2 × 90MSPS
DVB-S/S2 code rate 1/2,2/3,3/4,5/6,7/8 for DVBS,
1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6,8/9,9/10, for DVBS2
DVB-T2/T frequency range VHF:170MHz ~ 227MHz
UHF:470MHz ~ 862MHz
DVB-T2/T demodulation 16QAM,64QAM,256QAM, QPSK
Bandwidth DVB-T2/T 6M / 7M / 8M
DVB-C frequency range 54 to 862MHz
DVB-C demodulation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
DVB-C symbol rate 2000 × 7000
Dimensions (L × W × H) 482mm × 300mm × 44.5mm
Temperature range 0 ~ 45 ℃ (operating); -20 ~ 80 ℃ (storage)
Power requirements ca 100V ± 10%, 50 / 60Hz ca 220V ± 10%, 50 / 60Hz

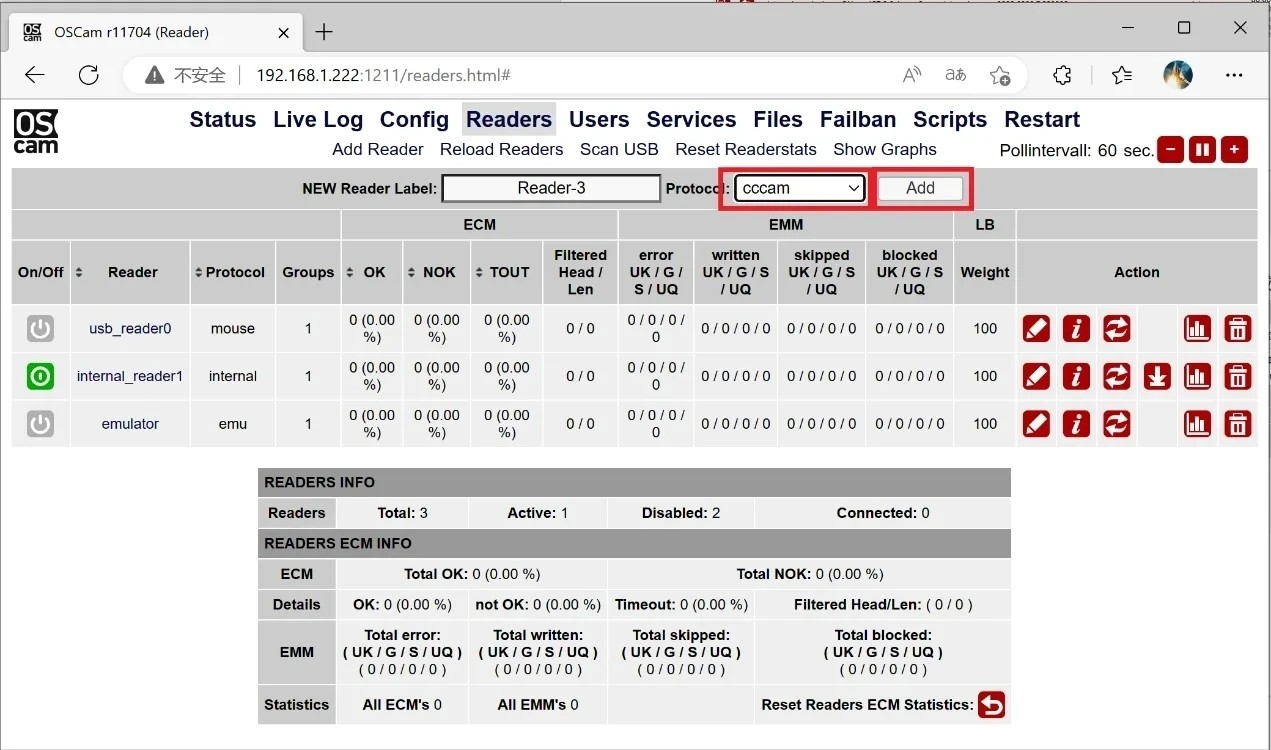

ocam shared account decryption
Live Streaming Interface
