Product Description

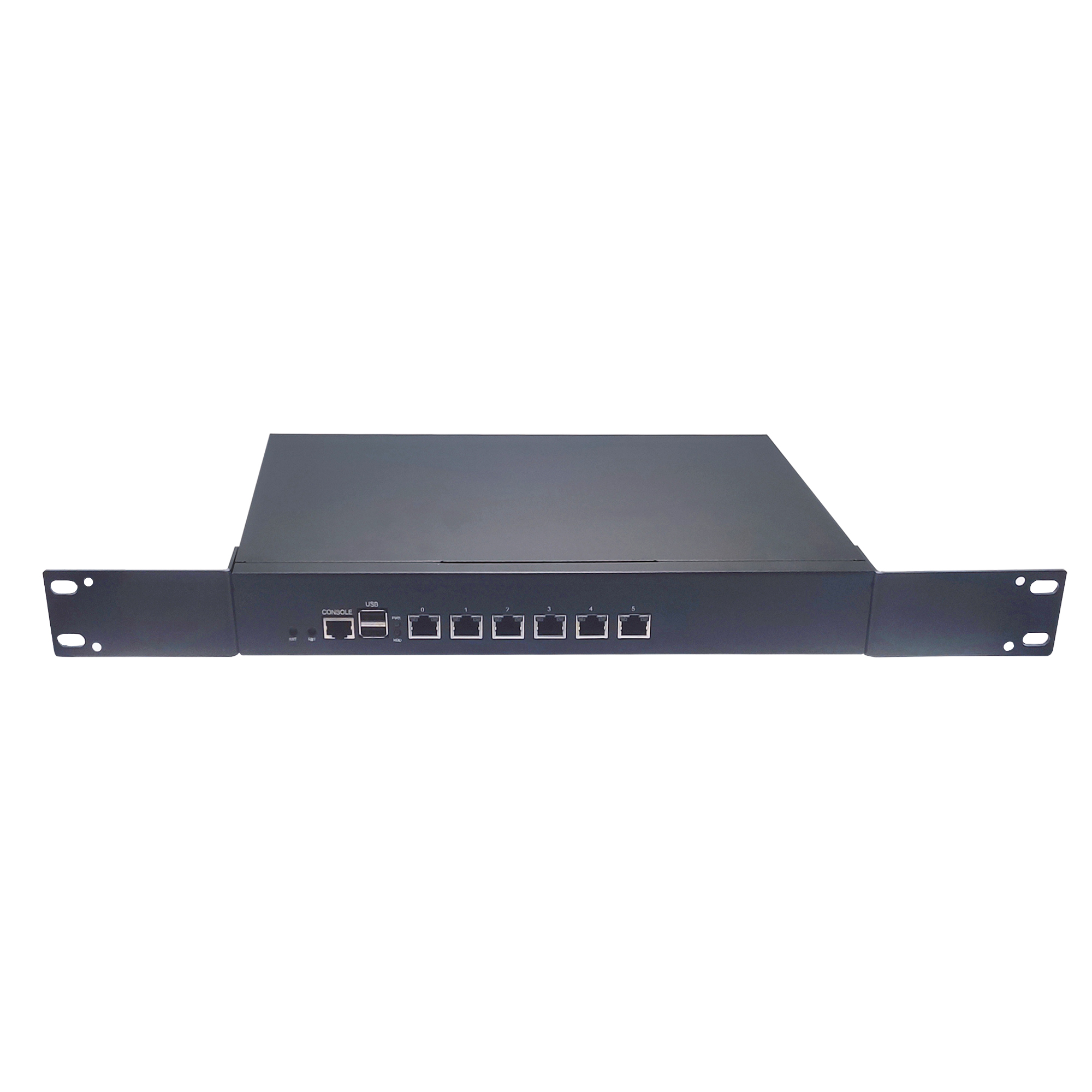

An IPTV gateway is a device used in protocol conversion scenarios and streaming media distribution scenarios. It can convert broadcast network IP streams via HTTP, UDP, RTP, RTSP and HLS and TS files to HTTP, UDP, HLS. The system can be integrated by receiving multiple commercial streaming services. And, the system can directly provide streaming media services.

Key Features

* Support uploading TS files through Web management

* Support IP anti-jitter function

* Support adding rolling subtitles,

* Support to download IPTV APK directly from this device

* Supports about 80-100 HD/SD programs (bit rate: 2-8Mbps) When converting HTTP/RTP/RTSP/HLS to UDP (multicast), the actual application shall prevail, and the recommended CPU usage is up to 80%

* Support Android set-top box and TV program playback for APK download, up to 300 terminals

* Control via web-based NMS management via DATA port

Product Parameter

Input

IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS

TS files uploading through Web management

IP output

IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS

IP out thru CH 1-5(1000M) over HTTP/ HLS/UDP

System

CPU: NDSK300(I3 3220)

Memory: 8G

Solid-State Disk (SSD): 32G (60G optional)

Channel switching time with STB: HTTP (1-3s), HLS (0.4-0.7s)

Support adding scrolling caption, welcome words, boot image

Play programs with APK downloaded android STB and TV, maximum 300 terminals(See details in below Test data for reference)

Support about 80-100 HD/SD programs (Bitrate: 2-8Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization

web-based NMS management thru DATA port

General

Demission

330mm×185mm×44mm (WxLxH)

Temperature

0~45℃(operation), -20~80℃(storage)

Power Supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Main Features

* 6 data ports:

First data port: IP out over HTTP, UDP (SPTS), HLS

Data CH1-5 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS

IP output via HTTP, HLS and UDP

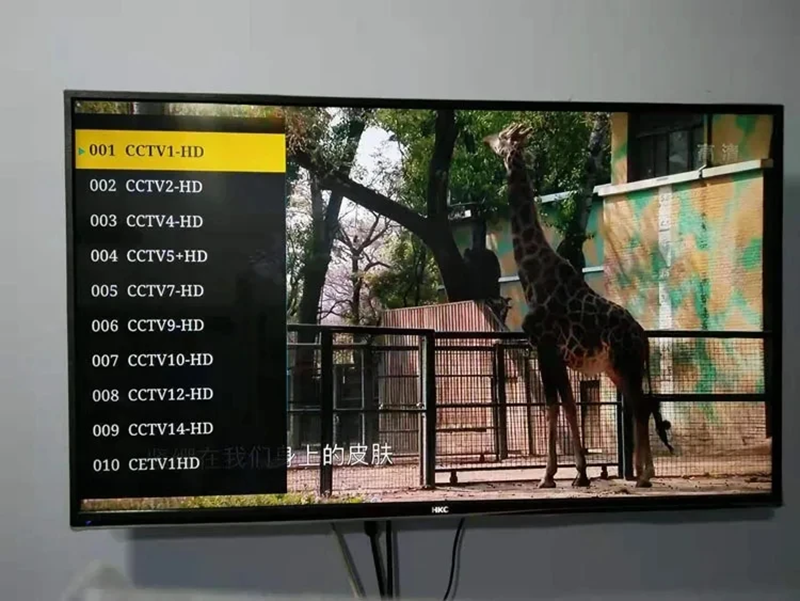

Live Streaming Interface

System Operation Interface
