Product Description

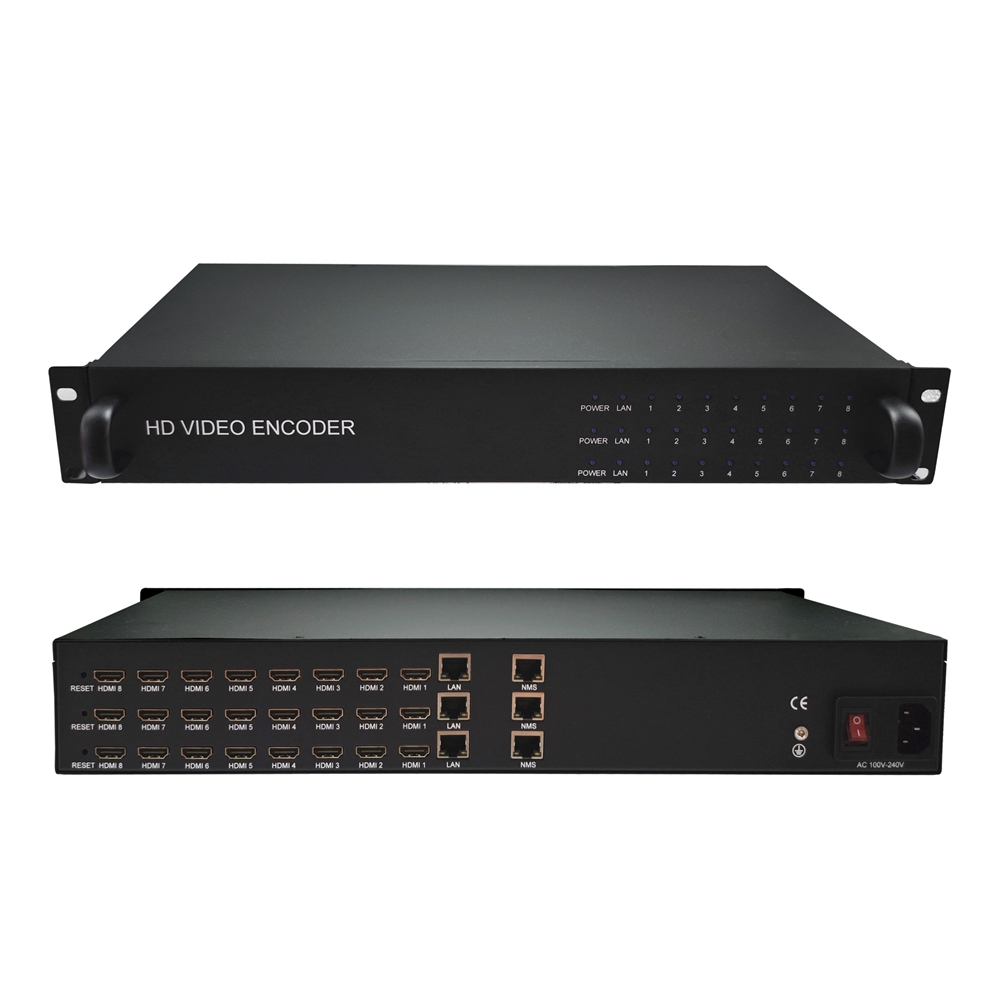

The TYE-1001 Network Encoder (Network Encoder Processor) is an encoding device for IP broadcasting.

It is an encoding device for IP broadcasting. It is equipped with 8/12/16/24 HDMI input channels and supports H.264/H.265 video encoding and LC-AAC or HE-AAC audio encoding.

It supports H.264/H.265 video encoding and LC-AAC or HE-AAC audio encoding. The signal source can be from set-top box, computer, TV, etc. It can transmit live programmes over the Internet/LAN and provide IP output via UDP (unicast/multicast).

(unicast/multicast), SRT, RTSP, RTMP, HTTP and HLS for IP output, and the output signal can be received by PCs, mobile phones and other mobile terminals.

The TYE-1001 gives you access to your IP STB, PC or TV anytime, anywhere.

Watch your problems anytime, anywhere

Product Parameters

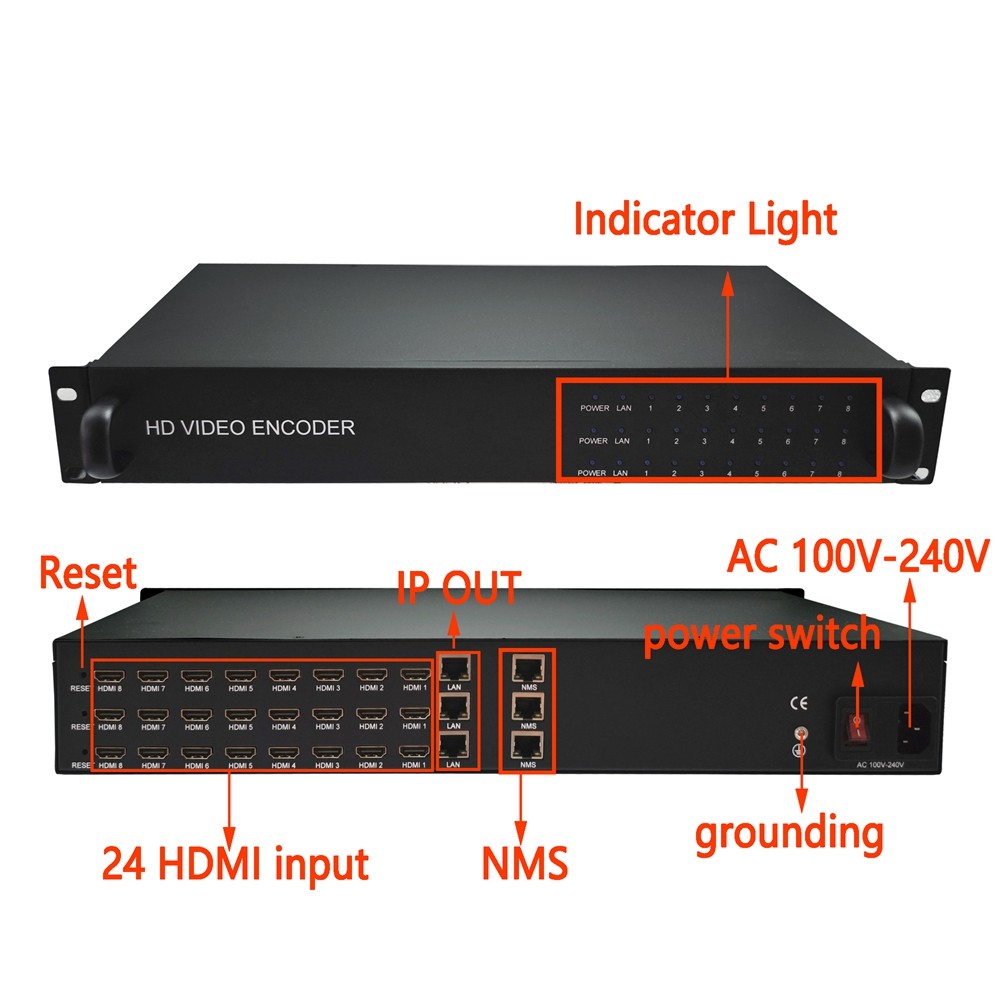

Audio and video in Video in 8/16/24 HDMI-compatible

 Audio in 8/12/16 /24 HDMI-compatible Built in audio

Video encode Encoding type H.264/MJPEG

 H.264 level Baseline /Main /High

 FPS 5-30

 GOP 5-300

 Bit rate(k bit) 32-32000

 Encoded size 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/same as the input Maximum resolution 1920x1080P60

 Bit rate control CBR/VBR

 Stream RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP/RTP

Audio encode Audio Input ANALOG/HDMI-compatible

 Sample rate 44100/48000/Same as input sample rate

 Encoder AAC/AAC+/AAC++/MP3/MP2/AC3

 Audio Channel L+R/L/R

 Coding bit rate AAC:48000-256000/AAC+:24000-48000/

AAC++:12000-32000/MP3:64000-320000/

MP2: 64000-320000/ AC3:40000-640000

 Digital volume -50~50

 G711 Over PTE Disable/Enable

ONVIF audio G711 Over RTSP Disable/Enable /Enable and resample with 8k

 G711 G711A/G711U

Video Video Roate 0°/90°/180°/270°

 Flip and Mirror Disable/ Mirror/ Flip/ Flip and Mirror

 Video Clipping Disable/Enable

 Video Clipping Coordinate Can be adjusted

 Video Clipping Width and Height Can be adjusted

OSD Transparency 0-128

 Type Text/Img/Scrolling text

 Zone 4 Zone

 X 0-1920

 Y 0-1080

 LOGO 16 logos can be uploaded for selection

 Font size 8-72

 Background color Transparent/White/Black

 Font color RGB color

Common Network 1000Mbps

 Configuration WEB,Upload,Reset

 ONVIF Support ONVIF to search and browse videos

 Power Supply 12V/DC,2A

 Power <12W

 Temperature -20℃+60℃

 Humidity <90%, non-condened

 Size 23.5cm x 11.2cm x 3cm

 Weight 4.5Kg
